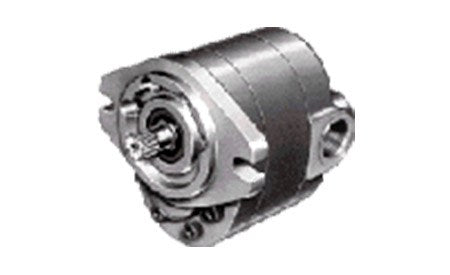

50PH38DBCRF | Hydraulic Pump 50 Series 50PH38 DBCRF
$0.00
- Rated working pressure: åÊ3000 psi
- Max. shock & surge pressure: åÊ3500 psi
- Max. flow rate (delivery): åÊ45 GPM
- Max speed (continuous): åÊUp to 3000 RPM
- Max. horse power: åÊ78 HP
- Mounting: åÊSAE "B" size 2-bolt
|
åÊDisplacement |
1000 (RPM) - Theoretical Flow Rate (GPM) |
1500 (RPM) - Theoretical Flow Rate (GPM) |
2000 (RPM) - |
2500 (RPM) - Theoretical Flow Rate (GPM) |
3000 (RPM) - Theoretical Flow Rate (GPM |
| 3.80 | 14.8 | 22.2* | 29.6* | 37.0* | - |
*Indicates that Single rotation pump with large inlet is required.
åÊ
|
åÊSpecial Options |
Rotation | Shaft Size & Type |
Port Location |
Port Inlet Size | Port Outlet Size |
| 250 psi Shaft Seal | Dual | 7/8" Dia.åÊKeyed | Rear | 1åÊ5/16" | 1 5/16" |
åÊ
åÊ
NOTE: åÊProduct images are for representation only.
