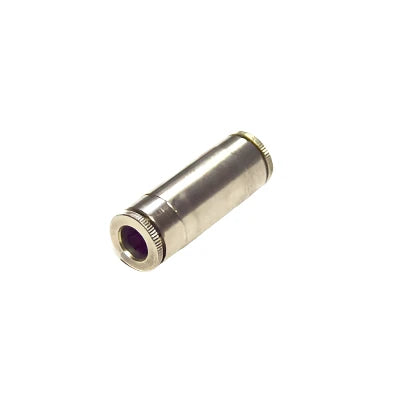

246002  |  Hose End for 1/8" ID Hose
  • For single-line central lubrication system.
  • For dispensing fluid or semi-fluid lubricants.
  • Output is externally adjustable.
  • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-43, SL-41 and/or SL-44.
  • Individual injectors can be easily removed for inspection or replacement.
  • Carbon steel injectors with Nitrile or flouroelastomer packings.
  • Injectors with flouroelastomer packings are used for heat resistant applications or when lubricant to be dispensed requires flouroelastomer packings for compatibility (indicated by black adjustment caps).
Output Min./Max. 0.001 cu. in. / 0.016 cu. in.
Operating Pressure Min./Max. 750 psig / 1000 psig
Operating Pressure - Typical 850 psig
Operating Pressure - Vent 150 psig
Manifold Inlet Connection 1/8" NPTF (F)
Injector Outlet Connection 1/8"O.D. tube connection



 Model Number of Outlets A Dimension B Dimension
Standard 10 7 7/8" 8 3/8"



Notes:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing – 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Standard injectors have Nitrile packings (200°F/93°C max.); Heat Resistant injectors have flouroelastomer packings (350°F/176°C max., depending on lubricant used) and black adjusting cap. Check packing compatibility with synthetic lubricants.Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with two turns at .001 cu. in./turn.





Note:  Product images are for representation only.

Retrofit kits to field replace current 8L Model 203 reservoirs to ones without lids. The retrofit kit promotes good maintenance practice and improves system performance by eliminating grease contamination through the removable lid. For each field retrofit kit, two part numbers need to be ordered.

  • One part number for the reservoir
  • One part number for the fixed paddle

Assembly is required. The fixed paddle snaps in place and the new reservoir gasket replaces the old one.

Model Description
Reservoir 8XBN/8YN





Product image is for representation only.

Ideal for mobile applications, rental machines and construction machines. Versatile, compact and economical, this pump is enhanced with low-level control, printed circuit board MDF01 with attached data logger module and a keypad with display.

QuickData Displays:

  • Current status and operating data
  • Malfunctions of the lubrication system with the time of occurrence
  • Remedying of the malfunction with date, time and duration of malfunction
  • Low-level signal of reservoir and regular refilling
  • Modifications in the pause time programming
  • Number of automatically and manually triggered lube cycles as well as the corresponding lubricant consumption
  • Power supply interruptions

The QuickData software is updated and all data can be read out by using an offthe-shelf, infared IrDa-to-USB adapter. All indications enable the users to draw their conclusions regarding the condition, function, reliability, usability and duration of service of the machine or the device. All information can be analyzed and documented and is then available as a written protocol.

Model Specifications

Description: P233-2XL-1K6-12-2A5.10-MDF-A
Power: 12 VDC
Reservoir Capacity: 2 Liters / 122 cu. in. / 4 lbs.
Grease: Yes
Low-Level Control: Yes
Printed Circuit Board: Yes

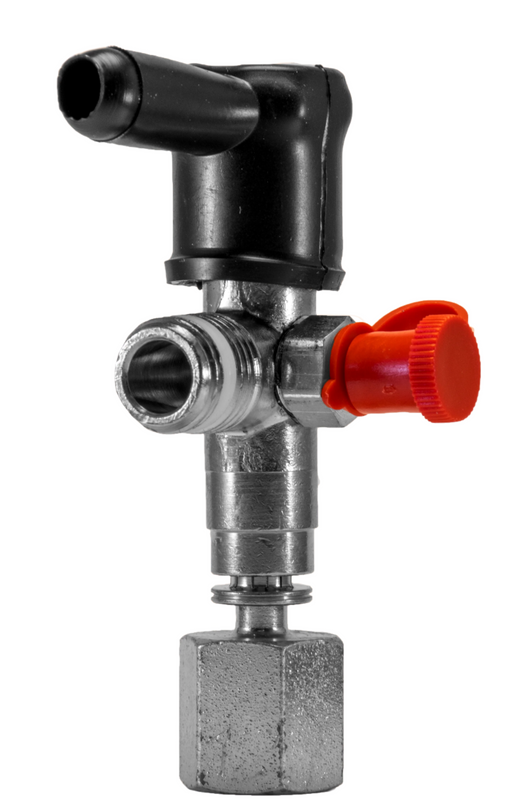

These pumps do not include a pressure relief valve or proximity switch which must be ordered separately.
Other technical data and dimensions are identical to the P203.



Product image is for representation only.

82676  |  Air-Operated (Single Stroke) Oil Pump

Same as Model 82570 except for use with external oil supply through ½" NPT(F) oil inlet (maximum head pressure 80 psi).

Lubricant/Air Ratio: 20:1
Max. Output: 2.4 cu. in.
Reservoir Capacity: Remote
Air Inlet: 1/4" NPTF (F)
Lube Outlet: 1/4" NPTF (F)
Lubricant Oper. Pressure (Min./Max.): 750 psig / 1000 psig
Dimensions (HxWxL): 18 1/2" x 5 3/4" x 21"
Air Valve Required: 4-way

Note:  Air consumption @ 100 psi is 0.15 CFM per stroke.  Check compatibility when using synthetic oils.

Pump discharges lubricant on air-powered forward stroke and vents on springpowered return stroke through built-in check/vent valve. Translucent reservoir is refilled through filler cap with strainer.

Lubricant/Air Ratio: 20:1
Max. Output: 0.45 cu. in.
Reservoir Capacity: 4 1/2 pint / 123 cu. in.
Air Inlet: 1/4" NPTF (F)
Lub Outlet: 1/4" NPTF (F)
Lubricant Oper. Pressure (Min./Max.): 750 psig / 1000 psig
Dimensions (HxWxL): 18 1/2" x 5 1/2" 6"
Air Valve Required: 3-way

Note:  Air consumption @ 100 psi is 0.15 CFM per stroke.  Check compatibility when using synthetic oils.

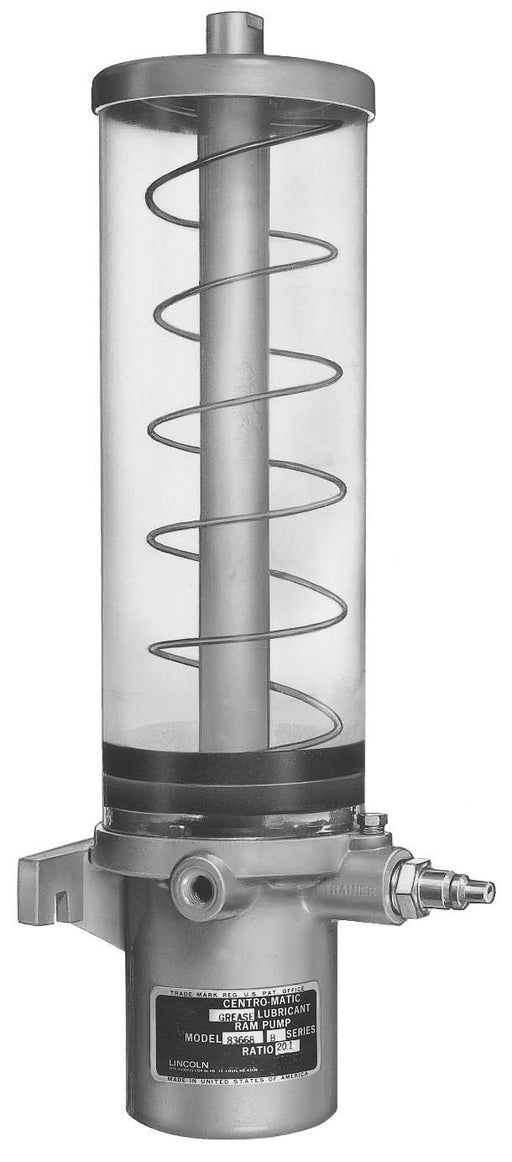

Pump discharges lubricant on air-powered forward stroke and vents on springpowered return stroke through built-in check/vent valve. Reservoir is translucent with spring-loaded follower. Includes filler fitting for refilling reservoir with Model 81834 or other manual pump equipped with Model 645006 coupler.

Lubricant / Air Ratio: 20:1
Max. Output: 0.45 cu. in.
Reservoir Capacity: 4 lb. / 120 cu. in.
Reservoir Temp Range: 0 F to 150 F
Air Inlet: 1/4" NPTF (F)
Lube Outlet: 1/4" NPTF (F)
Lubricant Oper. Pressure (Min. / Max.): 1200 psig / 3500 psig
Dimensions (HxWxL): 18 1/2" x 5 1/4" x 6"
Air Valve Required: 3-way

Note:  Air consumption @ 100 psi is 0.15 CFM per stroke.



Timer Specifications

Cycle Time (Min./Max.): 20 sec. / 24 hr.
On Time (Min./Max.): 10 sec. / 1 min.
Power Requirements: 120 VAC, 60 hz
Ambient Oper. Temp. Range: 10 F to +150 F





Product image is for representation only.

  • For single-line central lubrication system.
  • For dispensing fluids or semi-fluid lubricants.
  • Output is externally adjustable. • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-42, SL-41 and/or SL-44.
  • Individual injectors can be easily removed for inspection or replacement.
  • Carbon steel injectors with Nitrile or flouroelastomer packings.
  • Injectors with flouroelastomer packings are used for heat resistant applications or when lubricant to be dispensed requires flouroelastomer packings for compatibility (indicated by black adjustment caps).
Output Min./Max. 0.001 cu. in. / 0.016 cu. in.
Operating Pressure Min./Max. 750 psig / 1000 psig
Operating Pressure - Typical 850 psig
Operating Pressure - Vent 150 psig
Manifold Inlet Connection 1/4" NPTF (F)
Injector Outlet Connection 1/8"O.D. tube connection



 Model Number of Outlets A Dimension B Dimension
Standard 4 3 1/2" 4"



Notes:

  1.  Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing – 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Standard injectors have Nitrile packings (200°F/93°C max.)
  4. Heat Resistant injectors have flouroelastomer packings (350°F/176°C max. depending on lubricant used) and Black Adjusting Cap.
  5. Check packing compatibility with synthetic lubricants.
  6. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with five turns at .0014 cu. in./turn.





Note:  Product images are for representation only.

  • For single-line central lubrication system.
  • For dispensing fluids or semi-fluid lubricants.
  • Output is externally adjustable. • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-42, SL-41 and/or SL-44.
  • Individual injectors can be easily removed for inspection or replacement.
  • Carbon steel injectors with Nitrile or flouroelastomer packings.
  • Injectors with flouroelastomer packings are used for heat resistant applications or when lubricant to be dispensed requires flouroelastomer packings for compatibility (indicated by black adjustment caps).
Output Min./Max. 0.001 cu. in. / 0.016 cu. in.
Operating Pressure Min./Max. 750 psig / 1000 psig
Operating Pressure - Typical 850 psig
Operating Pressure - Vent 150 psig
Manifold Inlet Connection 1/4" NPTF (F)
Injector Outlet Connection 1/8"O.D. tube connection



 Model Number of Outlets A Dimension B Dimension
Standard 2 2" 2 1/2"



Notes:

  1.  Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing – 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Standard injectors have Nitrile packings (200°F/93°C max.)
  4. Heat Resistant injectors have flouroelastomer packings (350°F/176°C max. depending on lubricant used) and Black Adjusting Cap.
  5. Check packing compatibility with synthetic lubricants.
  6. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with five turns at .0014 cu. in./turn.





Note:  Product images are for representation only.

  • For single-line central lubrication system.
  • For dispensing fluid or semi-fluid lubricants.
  • Output is externally adjustable.
  • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-43, SL-41 and/or SL-44.
  • Individual injectors can be easily removed for inspection or replacement.
  • Carbon steel injectors with Nitrile or flouroelastomer packings.
  • Injectors with flouroelastomer packings are used for heat resistant applications or when lubricant to be dispensed requires flouroelastomer packings for compatibility (indicated by black adjustment caps).
Output Min./Max. 0.001 cu. in. / 0.016 cu. in.
Operating Pressure Min./Max. 750 psig / 1000 psig
Operating Pressure - Typical 850 psig
Operating Pressure - Vent 150 psig
Manifold Inlet Connection 1/8" NPTF (F)
Injector Outlet Connection 1/8"O.D. tube connection



 Model Number of Outlets A Dimension B Dimension
Heat Resistant 1 1 1/8" 1 5/8"



Notes:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing – 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Standard injectors have Nitrile packings (200°F/93°C max.); Heat Resistant injectors have flouroelastomer packings (350°F/176°C max., depending on lubricant used) and black adjusting cap. Check packing compatibility with synthetic lubricants.Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with two turns at .001 cu. in./turn.





Note:  Product images are for representation only.

  • For single-line central lubrication system.
  • For dispensing fluid or semi-fluid lubricants.
  • Output is externally adjustable.
  • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-43, SL-41 and/or SL-44.
  • Individual injectors can be easily removed for inspection or replacement.
  • Carbon steel injectors with Nitrile or flouroelastomer packings.
  • Injectors with flouroelastomer packings are used for heat resistant applications or when lubricant to be dispensed requires flouroelastomer packings for compatibility (indicated by black adjustment caps).
Output Min./Max. 0.001 cu. in. / 0.016 cu. in.
Operating Pressure Min./Max. 750 psig / 1000 psig
Operating Pressure - Typical 850 psig
Operating Pressure - Vent 150 psig
Manifold Inlet Connection 1/8" NPTF (F)
Injector Outlet Connection 1/8"O.D. tube connection



 Model Number of Outlets A Dimension B Dimension
Standard 4 3 3/8" 3 7/8"



Notes:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing – 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Standard injectors have Nitrile packings (200°F/93°C max.); Heat Resistant injectors have flouroelastomer packings (350°F/176°C max., depending on lubricant used) and black adjusting cap. Check packing compatibility with synthetic lubricants.Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with two turns at .001 cu. in./turn.





Note:  Product images are for representation only.

  • For single-line central lubrication system.
  • For dispensing fluid or semi-fluid lubricants.
  • Output is externally adjustable.
  • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-43, SL-41 and/or SL-44.
  • Individual injectors can be easily removed for inspection or replacement.
  • Carbon steel injectors with Nitrile or flouroelastomer packings.
  • Injectors with flouroelastomer packings are used for heat resistant applications or when lubricant to be dispensed requires flouroelastomer packings for compatibility (indicated by black adjustment caps).
Output Min./Max. 0.001 cu. in. / 0.016 cu. in.
Operating Pressure Min./Max. 750 psig / 1000 psig
Operating Pressure - Typical 850 psig
Operating Pressure - Vent 150 psig
Manifold Inlet Connection 1/8" NPTF (F)
Injector Outlet Connection 1/8"O.D. tube connection



 Model Number of Outlets A Dimension B Dimension
Standard 2 1 7/8" 2 3/8"



Notes:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing – 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Standard injectors have Nitrile packings (200°F/93°C max.); Heat Resistant injectors have flouroelastomer packings (350°F/176°C max., depending on lubricant used) and black adjusting cap. Check packing compatibility with synthetic lubricants.Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with two turns at .001 cu. in./turn.





Note:  Product images are for representation only.

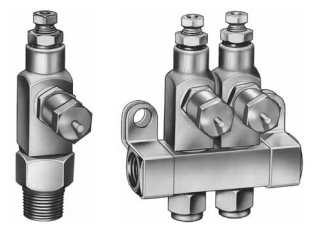

  • For single-line, high-pressure central lubrication system.
  • For dispensing lubricants compatible with polyurethane seals up to NLGI No. 2 (refer to Design Guide).
  • Output is externally adjustable.
  • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-32, SL-33, SL-1, SL-V and/or SL-11.
  • Individual injectors can be easily removed for inspection or replacement.
  • Two SL-V XL injectors are required to replace one SL-11 injector.
  • Each SL-V XL injector includes a clear polycarbonate protective cap
Material Carbon Steel
Output Min. / Max. 0.015 cu. in. / 0.305 cu. in.
Operating Pressure Min. / Max. 1850 psig / 6000 psig
Operating Pressure - Typical 2500 psig
Operating Pressure - Vent 1000 psig
Manifold Inlet 3/8" NPTF
Injectout Outlet 1/8" NPTF



Model Specifications

Type Four Injector Manifold
Number of Outlets 4
A Dimension 2 1/2"
B Dimension 5 1/2"



Notes:

  1. Injector manifolds have 13⁄32" (10.3 mm) dia. mounting holes for 3⁄8" bolt.
  2. Injectors have polyurethane seals. Check compatibility with synthetic lubricants.
  3. Injector rated for 180°F (80°C) max. ambient temperature, depending on lubricant used.
  4. Injectors include fitting for filling feedlines via alternate outlet port.
  5. Output with adjustment screw hand-tightened is .015 cu. in. Maximum output is achieved with 20 1/2 turns at .014 cu. in./turn.



Product images are for representation only.

  • For single-line, high-pressure central lubrication system.
  • For dispensing lubricants compatible with polyurethane seals up to NLGI No. 2 (refer to Design Guide).
  • Output is externally adjustable.
  • Indicator stem permits visual check of injector operation.
  • May be combined in a circuit of injectors SL-32, SL-33, SL-1, SL-V and/or SL-11.
  • Individual injectors can be easily removed for inspection or replacement.
  • Two SL-V XL injectors are required to replace one SL-11 injector.
  • Each SL-V XL injector includes a clear polycarbonate protective cap
Material Carbon Steel
Output Min. / Max. 0.015 cu. in. / 0.305 cu. in.
Operating Pressure Min. / Max. 1850 psig / 6000 psig
Operating Pressure - Typical 2500 psig
Operating Pressure - Vent 1000 psig
Manifold Inlet 3/8" NPTF
Injectout Outlet 1/8" NPTF



Model Specifications

Type Three Injector Manifold
Number of Outlets 3
A Dimension 1 1/4"
B Dimension 4 1/4"



Notes:

  1. Injector manifolds have 13⁄32" (10.3 mm) dia. mounting holes for 3⁄8" bolt.
  2. Injectors have polyurethane seals. Check compatibility with synthetic lubricants.
  3. Injector rated for 180°F (80°C) max. ambient temperature, depending on lubricant used.
  4. Injectors include fitting for filling feedlines via alternate outlet port.
  5. Output with adjustment screw hand-tightened is .015 cu. in. Maximum output is achieved with 20 1/2 turns at .014 cu. in./turn.



Product images are for representation only.

  • For single-line, high-pressure central lubrication system
  • For dispensing petroleum-based lubricants with a viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-32, SL-V, SL-V XL, SL-1 and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Available in stainless steel SAE 304, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel

Specifications:

  • Output:
    • Minimum: .001 cu. in. (.016 cc)
    • Maximum: .003 cu. in. (.049 cc)
  • Operating pressure:
    • Minimum: 1200 psig (83 bar)
    • Maximum: 3500 psig (241 bar)
    • Typical: 1500 psig (103 bar)
    • Vent: 200 psig (14 bar)



Material 304 Stainless Steel
Number of Outlets -
Manifold Inlet Connection NPTF -
Injector Outlet Connection O.D. Tube 1/8"
A Dimension Single Replacement Injector
B Dimension Single Replacement Injector



Note:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing. - 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Injectors have nitrile packings (200°F max. (93°C)). Checking packing compatibility with synthetic lubricants.
  4. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with two turns at .001 cu. in./ turn.



Note:  Product images are for representation only.

276424  |  Quicklub Spare Parts Kit
