Cylinders

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2.5 10 20.25 1 1/16 3/8





NOTE:  Product images are for representation only.

Features:

  • 2500 psi working pressure (4000 psi maximum shock)
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Clevis mounting
  • Top porting



 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF) Clevis Pin (Inches)
4 8 20.25 1 3/8 3/4-16 1



NOTE:  Product images are for representation only.

22683  |  2X6 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins



 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 6 16.25 1 1/16 3/8





NOTE:  Product images are for representation only.

22743  |  2X12 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 12 22.25 1 1/16 3/8





NOTE:  Product images are for representation only.

22763  |  3X20 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)*
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins

* These cylinders are rated for 2500 psi service, but the safe operating pressure is greatly reduced due to rod buckling considerations when cylinders are operated in the push mode. Please contact us for recommendations.

 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
3 20 30.25 1 1/4 1/2





NOTE:  Product images are for representation only.

22929  |  4X6 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
4 6 16.62 1 1/4 1/2



NOTE:  Product images are for representation only.

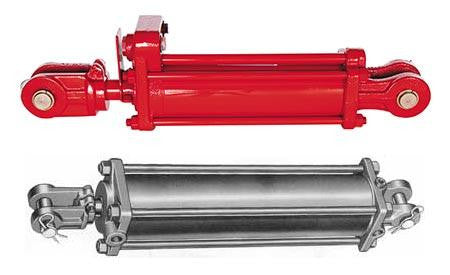

26029  |  3X8 Tie Rod Cylinder DC Series
Features:
  • Infinitely adjustable stroke from zero to maximum stroke
  • Heavy duty rod clevis with hardened steel bushings
  • Hardened steel pins
  • Cylinder barrels are skived burnished precision finished to provided long seal life protection from external damage and corrosion
  • Rod wipers clean dirt and foreign matter from rod to insure long seal life
  • High tensile strength tie rods with rolled threads for durability
  • NPTF dry-seal pipe thread ports
  • Standard ASAE 8" and 16" strokes
  • Induction hardened, chrome plated rods resist damage and rust
 Port Size (Standard) Port Size (Optional) 8" Stroke (Standard) 8" Stroke (Optional) 16" Stroke (Standard) 16" Stroke (Optional)
1/2 NPTF 3/4-16 1.25 (31.8 mm) 1.50 (38.1 mm) 1.25 (31.8 mm) 1.50 (38.1 mm)



NOTE:  Product images are for representation only.

Standard Features:

  • Cylinder barrels are skived burnished precision finished to provide long seal life
  • Rods are hardened, chrome plated and polished for long wear life
  • Rod wipers clean dirt and foreign matter from rod to insure long seal life
  • Steel base clevis mounting and ductile rod end clevis
  • 2500 psi rated working pressure
  • 4000 psi maximum shock & surge pressure
MATERIAL SPECIFICATIONS
Cylinder barrels ST52.3 steel alloy
Pistons Aluminum alloy
Rods Induction hardened and hard chrome plated C1045 steel alloy.  Rods over 3/4" dia., strokes up to 65"
Base and head castings Steel
Rod clevises Ductile iron
Seals 70 durometer Buna N o-rings with polyerethane back-up rings.  Double-lipped polyurethane u-cup rod seal



 BORE DIAMETER (INCH) STROKE (INCH) CL. CENTERS (INCH) ROD DIA. (INCH)
3 10 21.25 1 1/2





NOTE:  Product images are for representation only.

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins



 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF) Clevis Pin Diameter (Inches)
2 8 20 1/4 11/16 3/8 1



 NOTE:  Product images are for representation only.

22920  |  2X4 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 4 14.25 1 1/16 3/8



NOTE:  Product images are for representation only.

22921  |  2X8 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 8 18.25 1 1/16 3/8



NOTE:  Product images are for representation only.

22747  |  2X10 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 10 20.25 1 1/16 3/8





NOTE:  Product images are for representation only.

22632  |  2X14 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 14 24.25 1 1/16 3/8



NOTE:  Product images are for representation only.

22633  |  2X16 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 16 26.25 1 1/16 3/8



NOTE:  Product images are for representation only.

22744  |  2X18 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 18 28.25 1 1/16 3/8



NOTE:  Product images are for representation only.

22684  |  2X20 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 20 30.25 1 1/16 3/8





NOTE:  Product images are for representation only.

22862  |  2X24 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)*
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins

*These cylinders are rated for 2500 psi service, but the safe operating pressure is greatly reduced due to rod buckling considerations when cylinders are operated in the push mode. Please contact us for recommendations.

 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 24 34.25 1 1/16 3/8



NOTE:  Product images are for representation only.

22970  |  2X30 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)*
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins

* These cylinders are rated for 2500 psi service but the safe operating pressure is greatly reduced due to rod buckling considerations when cylinders are operated in the push mode. Please contact us for recommendations.

 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2 30 40.25 1 1/16 3/8



NOTE:  Product images are for representation only.

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2.5 4 14.25 1 1/16 3/8



NOTE:  Product images are for representation only.

22922  |  2 1/2X8 Tie Rod Cylinder DB Series

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2.5 8 18.25 1 1/16 3/8



NOTE:  Product images are for representation only.

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2.5 12 22.25 1 1/16 3/8



NOTE:  Product images are for representation only.

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2.5 14 24.25 1 1/16 3/8



NOTE:  Product images are for representation only.

Features:

  • 2500 psi working pressure (4000 psi max shock)*
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins

* These cylinders are rated for 2500 psi service, but the safe operating pressure is greatly reduced due to rod buckling considerations when cylinders are operated in the push mode. Please contact us for recommendations.

 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2.5 16 26.25 1 1/16 3/8



NOTE:  Product images are for representation only.

Features:

  • 2500 psi working pressure (4000 psi max shock)
  • 1500 psi on 4" bore, 1000 psi on 5" bore with std. pins
  • Precision skived and burnished barrel for long seal life
  • Hardened chrome plated rods resist damage and rust
  • Double lipped polyurethane rod seal for less leakage
  • Rod wipers clean dirt from rod to give long seal life
  • Clevis mounting with 1" pin holes
  • Ports inline with pins
 Bore (Inches) Stroke (Inches) Cl. Ctr. (Inches) Rod Diameter (Inches) Port Size (NPTF)
2.5 18 28.25 1 1/4 3/8



NOTE:  Product images are for representation only.
