Valves

The Cross Converta can be easily converted to a 3-way valve by using the conversion and port pipe plug supplied with the valve. It can also be converted to a 3-position manual detent valve by ordering a separate detent kit: part #1V0294.

This valve may be used to operate a double or single acting cylinder, or a reversible or single direction motor when a hold position in neutral is required.

Features:

  • 3 position, 4 way - convertible to 3 positions, 3 way
  • Open center (only), spring centered to neutral
  • 2000 psi maximum operating pressure
  • 25 GPM flow rate
  • 3/4” NPTF inlet and outlet ports
  • 1/2” NPTF work ports
  • Built-in relief valve (preset at 2000 psi)

Notes:

  • Not intended for use in metered lifting circuits.
  • Not convertible to pressure kick out.
  • Never use a manual detent in a logsplitter application.

NOTE:  Product images are for representation only.

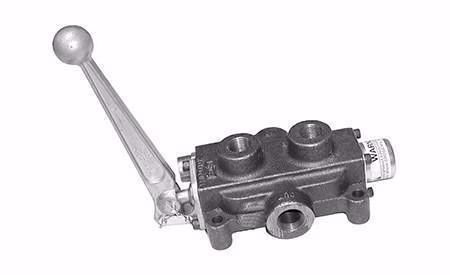

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Single spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

  • Pressure Relief Setting:  5076 psi
  • Supply Line Connection:  6 mm Compression Nut*



*  6 mm x 1/8" NPT supply line adapter (Model 304-19614-1) can be used to convert supply line connection to 1/8" NPT for these models.





Note:  Product image is for representation only.

The Cross SVS series selector valves are 2-position, 3 port units designed for maximum performance at an economical price. These valves can be used for uni-directional cylinder and motor control or for selecting one of two circuits from a single pump. Solenoid operators are available.

Features:

  • 3000 psi operating pressure
  • Knob actuator
  • Hard chrome plated spool



NOTE:  Product images are for representation only.

160523  |  Directional Valve AD Series SA22

The Cross AD Series directional valve offers differential style relief, load checks and excellent metering in a compact, economical model with parallel flow paths.

Features:

  • 3000 psi operating pressure
  • 15 GPM flow rate
  • 7/8-14 (SAE #10) inlet and outlet
  • 3/4-16 (SAE #8) work ports
  • Adjustment built-in relief valve, set at 2000 psi
  • Parallel operation
  • Load holding cylinder port check valves
  • Built-in power beyond capability
  • Double spool 3-position, 4-way
  • Field conversion kits part numbers:
  • 1V2566 - Power beyond sleeve (7/8-14, SAE#10)
  • 1V2572 - Closed center plug
  • 1R0035 - No relief plug for closed center
  • 1V2682 - 2 position with spring center manual detent kit
  • 1V2683 - 3 position manual detent kit

* For operating double-acting cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

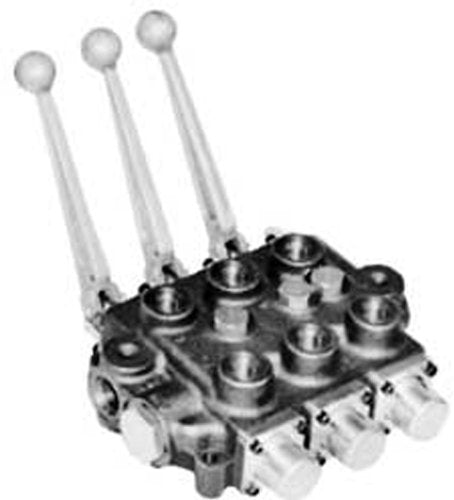

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Triple spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

Features:

  • 3000 psi operating pressure
  • 30 GPM flow rate
  • SAE ports, 1 1/16-12 in & out, 3/4-16 work
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Single spool, 3-position, 4-way, 12 volt


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

108360  |  Directional Valve C Series SCD2E

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Single spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

129027  |  Selector Valve SD Series SD4

A minimum of 100 psi pilot pressure is required for shifting the spool. With heavy duty end caps up to 3000 psi pilot pressure may be used. In some applications, pilot pressure can be supplied with a shuttle valve connected between ports "C" and "D" of the SD4 double selector.

Features:

  • SSD4: 2500 psi operating pressure, 1” NPTF ports
  • Complete handle assembly

Optional Field Conversion Kits

Description Part Number
Clevis Adapter 1V0930
Handle Adapter 1V0931
Knob 1A0768
Spring Return Assembly 1V0932
Two-Position Detent 1V0934



 NOTE:  Product images are for representation only.

128513  |  Sequence Valve SQV Series

128513 | Sequence Valve SQV Series

by Cross Mfg.
$105.28

The Cross SQV series valve is a 2-position, 3 port valve designed to alternately operate a pair of agricultural guide marker cylinders. May be used with single acting or double acting marker cylinders.

Features:

  • 2500 psi operating pressure
  • (3000 psi maximum surge)
  • 3/4-16 (SAE#8) ports
  • 2 position, 3 ported
  • Rugged construction
 Rated GPM Port Size (SAE)
2 3/4-16 SAE



 NOTE:  Product images are for representation only.

The Cross SVS series selector valves are 2-position, 3 port units designed for maximum performance at an economical price. These valves can be used for uni-directional cylinder and motor control or for selecting one of two circuits from a single pump. Solenoid operators are available.

Features:

  • 3000 psi operating pressure
  • Knob actuator
  • Hard chrome plated spool

Optional Field Kits

Description Part Number

Clevis Adapter

1V0930
Handle Assembly Kit 1V0931
Knob 1A0768
Spring Return Assembly 1V0932
Two-Position Detent 1V0934





NOTE:  Product images are for representation only.



160040  |  Directional Valve AD Series SA2

The Cross AD Series directional valve offers differential style relief, load checks and excellent metering in a compact, economical model with parallel flow paths.

Features:

  • 3000 psi operating pressure
  • 15 GPM flow rate
  • 7/8-14 (SAE #10) inlet and outlet
  • 3/4-16 (SAE #8) work ports
  • Adjustment built-in relief valve, set at 2000 psi
  • Parallel operation
  • Load holding cylinder port check valves
  • Built-in power beyond capability
  • Single spool 3-position, 4-way
  • Field conversion kits part numbers:
  • 1V2566 - Power beyond sleeve (7/8-14, SAE#10)
  • 1V2572 - Closed center plug
  • 1R0035 - No relief plug for closed center
  • 1V2682 - 2 position with spring center manual detent kit
  • 1V2683 - 3 position manual detent kit

* For operating double-acting cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

160698 | Directional Valve AD Series SAF2

The Cross AD Series directional valve offers differential style relief, load checks and excellent metering in a compact, economical model with parallel flow paths.

Features:

  • 3000 psi operating pressure
  • 15 GPM flow rate
  • 7/8-14 (SAE #10) inlet and outlet
  • 3/4-16 (SAE #8) work ports
  • Adjustment built-in relief valve, set at 2000 psi
  • Parallel operation
  • Load holding cylinder port check valves
  • Built-in power beyond capability
  • Double spool 1st spool 4-position float, 2nd spool 3-position
  • Field conversion kits part numbers:
  • 1V2566 - Power beyond sleeve (7/8-14, SAE#10)
  • 1V2572 - Closed center plug
  • 1R0035 - No relief plug for closed center
  • 1V2682 - 2 position with spring center manual detent kit
  • 1V2683 - 3 position manual detent kit

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Double spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Double spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Double spool, 1st spool 4-position float, 2nd spool 3-position


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Double spool, 1st spool 4-position float, 2nd spool 3-position


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Triple spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Triple spool, 1st spool 4-position float, 2nd & 3rd spool 3-position


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Triple spool, 1st spool 4-position float, 2nd & 3rd spool 3-position


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.



NOTE:  Product images are for representation only.

Features:

  • 3000 psi operating pressure
  • 30 GPM flow rate
  • SAE ports, 1 1/16-12 in & out, 3/4-16 work
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Double spool, 3-position, 4-way, 12 volt


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.
