RV21278  |  In-Line Automatic Relief Valve

Provide an economical means of protecting a hydraulic circuit against over pressurization.

Pressure Setting:  10,100 / 10,700 psi

Application: Provide an economical means of protecting an hydraulic circuit against over pressurization.

Operation: These factory preset valves are designed for maximum flow rate of 5 gpm (19 l/min). Furnished with 1/8" NPTF male port. All valves weigh 0.2 lb (0,1 kg). See chart in 'Specifications' for ordering information.

NOTE: Care should be exercised to protect workers from hot, pressurized hydraulic oil. Install these valves only in an enclosed or shielded area.





Product image is for representation only.

IDEAL FOR CONFINED AREAS
  • Power Tech plated piston rods and gland nuts resist scoring and corrosion.
  • Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
  • Coupler on 10 thru 50 ton models is angled upward 5° for added clearance.
  • Grooved piston top keeps load from sliding.
  • Cylinders can be “dead-ended” at full capacity.
Cylinder Capacity: 10 Tons
Stroke: 1-1/2"
Oil Capacity: Push - 3.4 cu. in.
Return - N/A
Bore Diameter: 1-11/16"
Cylinder Effective Area: Push - 2.24 sq. in.
Internal Pressure at Capacity: Push - 8,943 psi
Tons at 10,000 psi: Push - 11.2



IDEAL FOR CONFINED AREAS
  • Cylinder body, piston and gland nut “Power Tech” treated for corrosion and abrasion resistance.
  • Standard domed piston rod minimize effects of off-center loading.
  • Unique heavy duty spring provides fast piston return.
  • A 9796 3/8" NPTF female half coupler is standard.  Oil ports are 3/8" NPTF.
  • Couplers are angled upward for extra clearance.
Cylinder Capacity: 10 Tons
Stroke: 7/16"
Oil Capacity: 1.0 cu. in.
Bore Diameter: 1-11/16"
Cylinder Effective Area: 2.236 sq. in.
Internal Pressure at Capacity: 8,943 psi
Tons at 10,000 psi 11.18
P59L  |  2-Speed Single-Acting Hand Pump
  • More usable oil volume— use with larger or longer stroke cylinders.
  • True unloading valve set for 850 PSI (59 Bar) provides more efficiency and lower handle force.
  • Link design reduces handle effort by 40%.
  • Durable aluminum reservoir, manifold, and end cap.
  • Ergonomic non-slip handle grip provides more comfort.
  • Spring loaded handle lock incorporated into handle.

Power Team hand pumps, with the angled fill port, have a built in "relief valve" protection system. This system is designed to protect over-pressurization of the reservoir from sudden back pressure. This system also works as a seal to prevent oil leaks.

Speed: 2
Volume per Stroke:
LP - 0.25 cu. in
HP - 0.05 cu. in.
Maximum Pressure:
LP - 850 psi
HP - 10,000 psi
Handle Effort: 78 lbs.
Reservoir:
Oil Capacity - 29 cu. in.
Usable Capacity - 27 cu. in.
Oil Port: 3/8" NPTF
HS2000  |  1 - 1-1/2 Ton Hydraulic Spreader

Hydraulic Pry Bar is used to lift machines or as a clamp; spread concrete forms or rebar, or to perform straightening jobs.

  • Use to lift machines or as a clamp; spread concrete forms or rebar, or preform straightening jobs.
  • Conforms to ASME B30.1 standard.
  • High strength alloy steel forged upper and lower jaws on HS2000. Jaws are spring return; retract automatically when pressure is released.

No. HS2000- 1 ton capacity spreader. Full 2,000 lbs. (908 kg) capacity at 10,000 psi (700 bar) with 4" (102 mm) spread. Can be "dead-ended" at 4" (102 mm) spread under full load. Needs only 9/16" (14,2 mm) clearance to engage jaws.

Capacity: 1 Ton
Maximum Spread: 4"
Oil Capacity: 0.63 cu. in.
Minimum Clearance Required: 9/16





 RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING

  • Aluminum bronze bearing reduces wear caused by off-center loads.
  • Maximum sized springs speed piston return and increase spring life.
  • Solid steel cylinder body for durability.
  • Chrome plated piston rod resists wear and corrosion.
  • Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
  • Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
  • A 3/8" NPTF female half coupler is standard.
  • Order No.: C104C
  • Cylinder Capacity (Tons): 10
  • Stroke (in.): 4 1/8
  • Oil Cap. (cu. In.): 9.2
  • Bore Diameter (in.): 1 2/3
  • Cylinder Effective Area (sq. in): 2.236
  • Internal Pressure at Cap. (psi): 8948
  • Tons at 10,000 psi (psi): 11.2
  • Retracted Height (in.): 6 3/4
  • Extended Height (in.): 10 7/8
  • Outiside Diameter (in.): 2 1/4
  • Collar Thread (in.): 2 1/4-14
  • Piston Collar Thread Length (in.): 1 1/8
  • Base to Port (in.):  3/4
  • Piston Rod Diameter (in.): 1 1/2
  • Piston Internal Thread and Depth (in.): 1-8 x 3/4
  • Rod Protrusion (in.):  1/4
Stroke: 4-1/8"
Oil Capacity: 9.2 cu. in.
Bore Diameter: 1-11/16"
Cylinder Effective Area: 2.236 sq. in.
Internal Pressure at Capacity: 8,948 psi
Tons at 10,000 psi: 11.2



RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING
  • Aluminum bronze bearing reduces wear caused by off-center loads.
  • Maximum sized springs speed piston return and increase spring life.
  • Solid steel cylinder body for durability.
  • Chrome plated piston rod resists wear and corrosion.
  • Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
  • Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
  • A 3/8" NPTF female half coupler is standard.

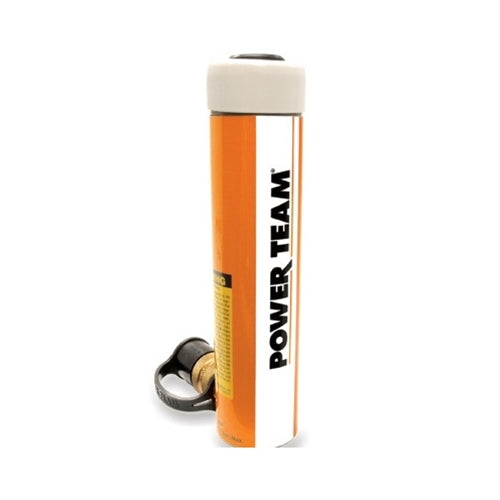

  • Order No.: C1012C
  • Cylinder Capacity (Tons): 10
  • Stroke (in.): 12 1/8
  • Oil Cap. (cu. In.): 27.1
  • Bore Diameter (in.): 1 2/3
  • Cylinder Effective Area (sq. in): 2.236
  • Internal Pressure at Cap. (psi): 8948
  • Tons at 10,000 psi (psi): 11.2
  • Retracted Height (in.): 15 3/4
  • Extended Height (in.): 27 7/8
  • Outiside Diameter (in.): 2 1/4
  • Collar Thread (in.): 2 1/4-14
  • Piston Collar Thread Length (in.): 1 1/8
  • Base to Port (in.):  3/4
  • Piston Rod Diameter (in.): 1 1/2
  • Piston Internal Thread and Depth (in.): 1-8 x 3/4
  • Rod Protrusion (in.):  1/4



Stroke: 12-1/8"
Oil Capacity: 27.1 cu. in.
Bore Diameter: 1-11/16"
Cylinder Effective Area: 2.236 sq. in.
Internal Pressure at Capacity: 8,948 psi
Tons at 10,000 psi: 11.2

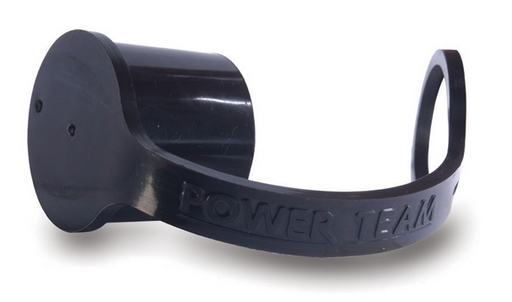

9800  |  Dust Cap
9799  |  Metal Dust Cap
9798  |  Male Quick Coupler
9797  |  Metal Dust Cap
9699  |  45 Degree Gauge Fitting
9685  |  Coupling

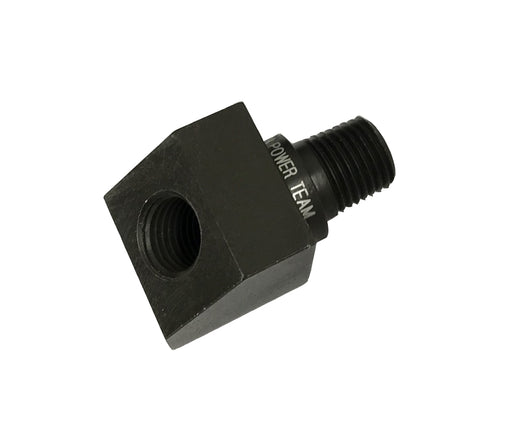

9678  |  45 Degree Fitting

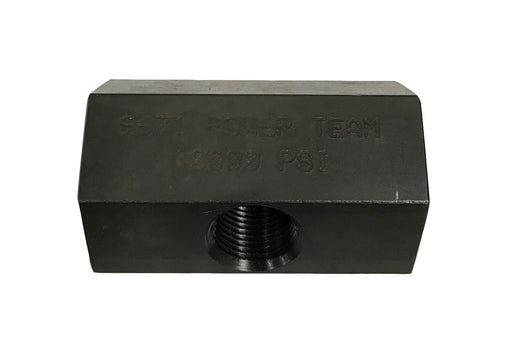

9671  |  Double Tee Adapter
9670  |  Tee Adapter

AW Hydraulic Oil ISO 46 - 1 Gallon

Recommended use:  Standard hydraulic oil.

Recommended restrictions:  None known.

Grade (ASTM): 215
Specific Gravity @ 60F: 0.88
Color (ASTM): 2.0
Flash Point: 400F
Fire Point: 430F
Pour Point: -30F
Viscosity - SUS @ 100F: 215
Viscosity - SUS @ 210F: 48
Viscosity Index: 100 min.
Foam Test (ASTM): Pass





Product image is for representation only.

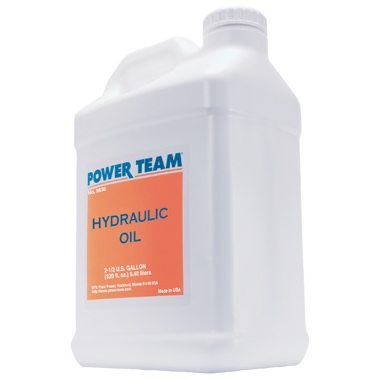

9637  |  Standard Hydraulic Oil - 1 Gallon

AW Hydraulic Oil ISO 46 - 1 Gallon

Recommended use:  Standard hydraulic oil.

Recommended restrictions:  None known.

Grade (ASTM): 215
Specific Gravity @ 60F: 0.88
Color (ASTM): 2.0
Flash Point: 400F
Fire Point: 430F
Pour Point: -30F
Viscosity - SUS @ 100F: 215
Viscosity - SUS @ 210F: 48
Viscosity Index: 100 min.
Foam Test (ASTM): Pass





Product image is for representation only.

9575  |  Shut-Off Valve

Application: This needle valve permits fine metering of hydraulic oil.

Operation: Can be used for controlling multiple single-acting cylinders.

Cylinder Application: Single-Acting
Operation: Manual
Valve Type: Shut-Off Valve
Volt:  -
Advance / Return:  -
Advance / Hold Return:  -
Posi-Check Feature:  -

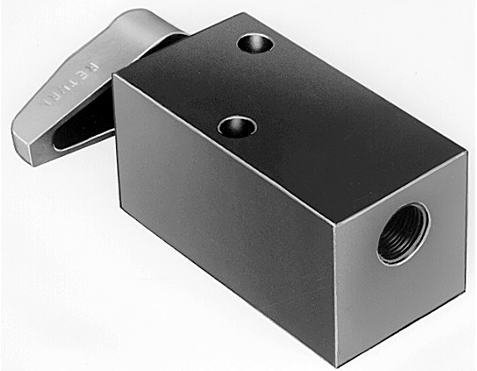

Application – Single-acting cylinders.

Actuation – Flipper lever operated.

Functions – Cylinder piston “advance”, “hold” and “retract”.

Used on these pumps – PE172, PA172 and PE84 series.


NOTE:
 A Pressure Switch and/or Gauge (Analog or Digital) may be attached to this valve.

CAUTION:
 To prevent sudden, uncontrolled descent of a load as it is being lowered, use a Load Lowering Valve (No. 9596) or Counter Balance Valve (No. 9720) in conjunction with the directional valve used in your application.

IMPORTANT: Conversion kit 251528 must be used when mounting any of the valves on PA17 or PE17 pumps.



Cylinder Application: Single-Acting
Operation: Manual
Valve Type: 2-way, 2-position
Volt:  -
Advance / Return: No
Advance / Hold Return: Yes
Posi-Check Feature: No



9112A  |  12 Ton Bottle Jack
9059  |  Heavy-Duty Gauge
  • Gauge features an easily readable and highly visible, red Day-glo® needle.
  • High strength steel bourdon tube ensures high cycle life.
  • Stainless steel case and lens locking ring.
  • Has 1/4" NPT connection.
  • Calibratible gauge.
Face Diameter: 4"
PSI: 0-10,000 psi
Tons: 0-17.5, 0-30 and 0-50
Major Graduations: 2000 psi
Minor Graduations:

200 psi, 0.5 Ton on 30, 50 Ton Scales;
0.2 Ton on 17.5 Ton Scale

Silicone Filled: No*
Use with Power Team Cylinder Series: RT172, RT302, RT503

*  Shipped “dry.” User can convert to “wet” using liquid silicone Order Number 9046.

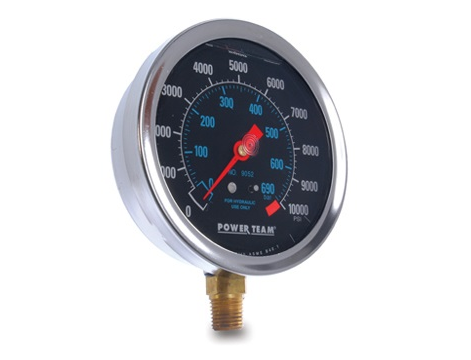

9052  |  Heavy-Duty Gauge
  • Gauge features an easily readable and highly visible, red Day-glo® needle.
  • High strength steel bourdon tube ensures high cycle life.
  • Stainless steel case and lens locking ring.
  • Has 1/4" NPT connection.
  • Calibratible gauge.
Face Diameter: 4"
PSI: 0-10,000 psi
Major Graduations: 1000 psi
Minor Graduations: 200 psi
Silicone Filled: Yes
Use with Power Team Cylinder Series: All
