160698 | Directional Valve AD Series SAF2


The Cross ADåÊSeriesåÊdirectional valve offers differential style relief, load checks and excellent metering in a compact, economical model with parallel flow paths.


  • 3000 psi operating pressure
  • 15 GPM flow rate
  • 7/8-14 (SAE #10) inlet and outlet
  • 3/4-16 (SAE #8) work ports
  • Adjustment built-in relief valve, set at 2000 psi
  • Parallel operation
  • Load holding cylinder port check valves
  • Built-in power beyond capability
  • Double spool 1st spool 4-position float, 2nd spool 3-position
  • Field conversion kits part numbers:
  • 1V2566 - Power beyond sleeve (7/8-14, SAE#10)
  • 1V2572 - Closed center plug
  • 1R0035 - No relief plug for closed center
  • 1V2682 - 2 position with spring center manual detent kit
  • 1V2683 - 3 position manual detent kit

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.

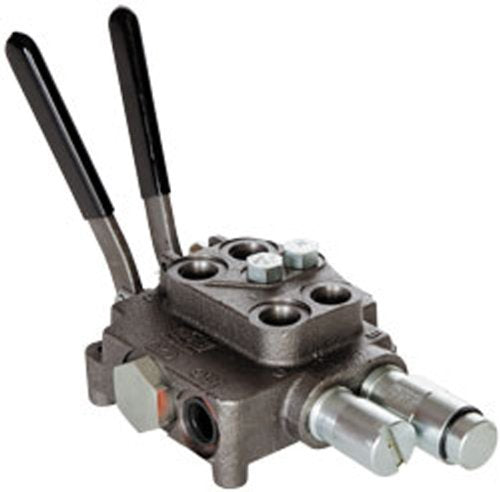

NOTE: åÊProduct images are for representation only.
