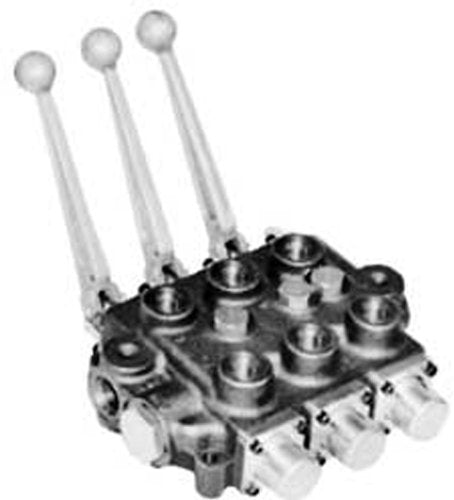

145750 | Directional Control Valve BA Series SBA222-ORB
$0.00
Features:
- 3000 psiåÊoperating pressure
- 30 GPM flow rate
- SAE ports, 1 1/16-12 in & out, 3/4-16 work
- Adjustable built-in relief set at 2000 psi
- Spring centered, openåÊcenter
- Built-in load checks for lifting
- TripleåÊspool, 3-position, 4-way
Field conversion kits:
- 1V0208 Power Beyond Sleeve (3/4‰ NPTF)
- 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
- 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
- 1V1626 Heavy Duty Handle Assembly
- 1V1485-02 Single Handle Actuator for 2 & 3 spool models
* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.
åÊ
NOTE: åÊProduct images are for representation only.
