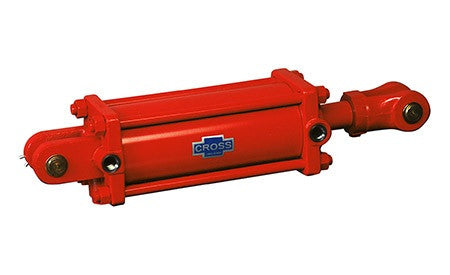

29467 | 3 1/2 X 24 Tie Rod Cylinder DH Series

$0.00

Designed for higher pressure systems and challenging applications, the DH heavy dutyåÊhydraulic tie rodåÊcylinderåÊfeatures upgraded castings and heavy duty seals to ensure quality performance and reliable service.

Features:

  • 3000 psi working pressure‰ÛÓsee chart
  • SAE ports‰ÛÓ9/16-18 on 2" & 2 1/2" bore, 3/4-16 on 3" bore and up
  • 1" pins‰ÛÓhardened steel on 3" bore & up
  • 1.25" pins on 16" stroke-ASAEåÊitems
åÊBore Diameter (Inches) Stroke (Inches) Rod Diameter (Inches)* Closed Centers (Inches) Max PSI**
3.5 24 1.25 34.25 3000

* Piston rods are sized with a safety factor of 2
**Maximum PSI at base port due to column buckling

åÊ

NOTE: åÊProduct images are for representation only.

×

Call for Price
