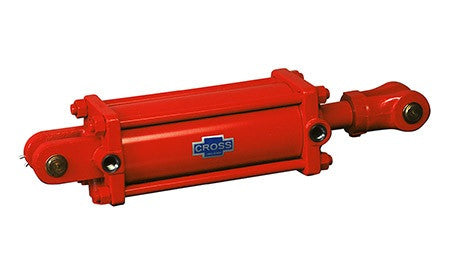

29460 | 3 1/2 X 8 Tie Rod Cylinder DH Series
Designed for higher pressure systems and challenging applications, the DH heavy dutyåÊhydraulic tie rodåÊcylinderåÊfeatures upgraded castings and heavy duty seals to ensure quality performance and reliable service.
- 3000 psi working pressure‰ÛÓsee chart
- SAE ports‰ÛÓ9/16-18 on 2" & 2 1/2" bore, 3/4-16 on 3" bore and up
- 1" pins‰ÛÓhardened steel on 3" bore & up
- 1.25" pins on 16" stroke-ASAEåÊitems
|åÊBore Diameter (Inches)||Stroke (Inches)||Rod Diameter (Inches)*||Closed Centers (Inches)||Max PSI**|
* Piston rods are sized with a safety factor of 2
**Maximum PSI at base port due to column buckling
NOTE: åÊProduct images are for representation only.
