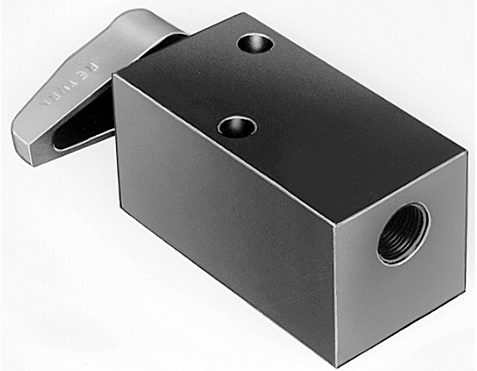

9517 | Pump-Mounted 2-Way, 2-Position Manual Valve
ApplicationåʉÛÒ Single-acting cylinders.åÊ
ActuationåʉÛÒ Flipper lever operated.åÊ
FunctionsåʉÛÒ Cylinder piston ‰ÛÏadvance‰, ‰ÛÏhold‰ and ‰ÛÏretract‰.åÊ
Used on these pumpsåʉÛÒ PE172, PA172åÊand PE84 series.
NOTE:åÊAåÊPressure SwitchåÊand/or Gauge (Analog or Digital)åÊmay be attached to this valve.åÊ
CAUTION:åÊTo prevent sudden, uncontrolled descent of a load as it is being lowered, use a Load Lowering Valve (No. 9596) or Counter Balance Valve (No. 9720)åÊin conjunction with the directional valve used in your application.åÊ
IMPORTANT:åÊConversion kit 251528 must be used when mounting any of the valves on PA17 or PE17 pumps.åÊ
åÊ
Cylinder Application: | Single-Acting |
Operation: | Manual |
Valve Type: | 2-way, 2-position |
Volt: | åÊ- |
Advance / Return: | No |
Advance / Hold Return: | Yes |
Posi-Check Feature: | No |
