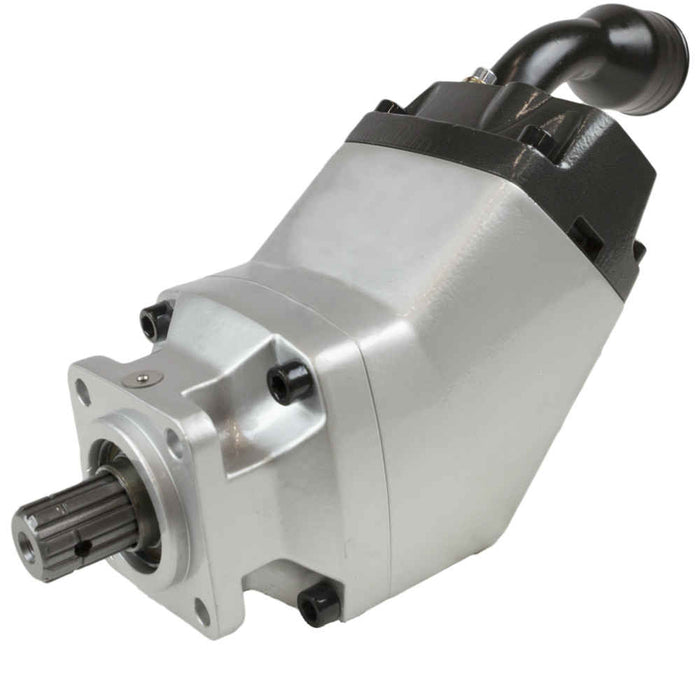

3784071 | F2 Pump F2-70/70 - L

$2,089.90
F2 Fixed Displacement Piston Pumps are widely used on truck applications with operating pressure up to 5000 PSI (350 BAR). These twin fl ow pumps provide two independent output flows with a single inlet in a compact package. These lightweight, efficient pumps were designed specifically for truck applications including cargo cranes, hook loaders, forest cranes and concrete mixer trucks.
Max. Displacement cu. in. / rev: 4.27 / 4.27 *
Outlet Pressure RPM: 4350 (300)
Drive Speed RPM: 1800
Max. Shaft Speed: 2550
Flow @ 1800 RPM**; Port A GPM (LPM): 32.3 (122.3)
Flow @ 1800 RPM**; Port B GPM (LPM): 32.3 (122.3)
Max. Input Power HP (KW): 150 (111.9)

 * Port A / Port B
** Port A and Port B



Product image is for representation only.

×

Call for Price
