3784042 | F2 Pump F2-42/42 - R
F2 Fixed Displacement Piston Pumps are widely used on truck applications with operating pressure up to 5000 PSI (350 BAR). These twin fl ow pumps provide two independent output flows with a single inlet in a compact package. These lightweight, efficient pumps were designed specifically for truck applications including cargo cranes, hook loaders, forest cranes and concrete mixer trucks.
|Max. Displacement cu. in. / rev:||2.62 / 2.50*|
|Outlet Pressure RPM:||5000 (350)|
|Drive Speed RPM:||1800|
|Max. Shaft Speed:||2550|
|Flow @ 1800 RPM**; Port A GPM (LPM):||20.4 (77.2)|
|Flow @ 1800 RPM**; Port B GPM (LPM):||19.5 (73.8)|
|Max. Input Power HP (KW):||118 (88.0)|
* Port A / Port B
** Port A and Port B

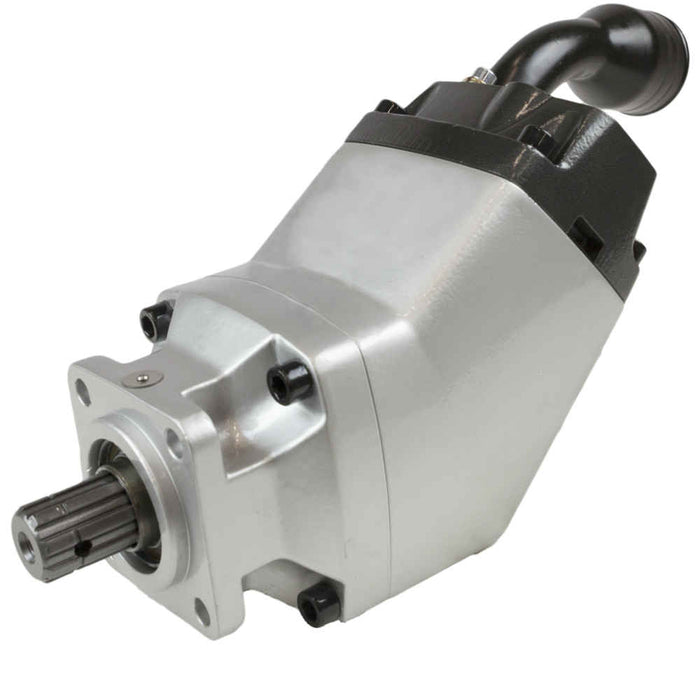

Product image is for representation only.
