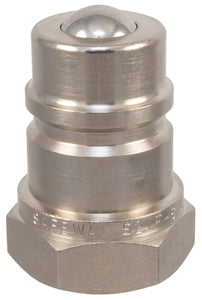

S71-6P | 1/2" Male Tip Poppet 3/4" NPT
$24.27
| Material | Steel |
| Valve Type | Poppet (O-ring Seal) |
| Seal Material | Nitrile (Buna-N) |
| Temperature Range (å¼F) | -40 to 250 |
| Coupler Size (Inch) | 1/2 |
| Coupler Size (mm) | 12.5 |
| Rated Flow (GPM) | 12.0 |
| Rated Flow (L/Min) | 45 |
| Industry Standard Numbers | ISO5675 |
| Tip Length (Inch) | 2.180 |
| Diameter (Inch) | 1.430 |
| Hex (Inch) | 1.250 |
| Description | Tip Half |
| Thread | 3/4 Female Pipe |
| Body Size (in) | 1/2 |
| Maximum Operating Pressure (psi) | 3,000 |
| Lock Style | Ball |
| Features | One hand connect/disconnect |
| Coupler Compatibilities | S40 Series |
| Industry Applications | Construction Forestry Transportation Agriculture |
