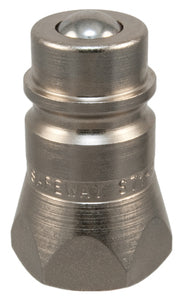

S71-16 | 1/2" Male Tip Half 7/8" - 14 Female ORB

$0.00
Material Steel
Valve Type Ball (Metal Seal)
Temperature Range (å¼F) -40 to 250
Coupler Size (Inch) 1/2
Coupler Size (mm) 12.5
Rated Flow (GPM) 12.0
Rated Flow (L/Min) 45
Industry Standard Numbers ISO5675
Tip Length (Inch) 1.932
Diameter (Inch) 1.220
Hex (Inch) 1.060
Description Tip Half
Thread 7/8-14 Female ORB
Body Size (in) 1/2
Maximum Operating Pressure (psi) 3,000
Lock Style Ball
Coupler Compatibilities S20 Series
S40 Series
Industry Applications Construction
Forestry
Transportation
Agriculture
×

Call for Price
