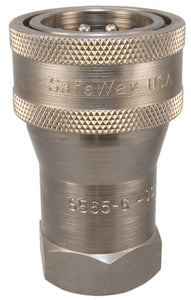

S565-3 | 3/8" Female Body Half Coupler
$0.00
| Material | Steel |
| Valve Type | Poppet (O-ring Seal) |
| Seal Material | Nitrile (Buna-N) |
| Temperature Range (å¼F) | -40 to 250 |
| Rated Flow (GPM) | 6.0 |
| Rated Flow (L/Min) | 23 |
| Industry Standard Numbers | ISO7241-1 Series A |
| Body Length (Inch) | 2.200 |
| Diameter (Inch) | 1.260 |
| Diameter (Inch) | 1.180 |
| Hex (Inch) | 1.060 |
| Description | Body Half |
| Thread | 3/8 Female Pipe |
| Body Size (in) | 3/8 |
| Maximum Operating Pressure (psi) | 4,500 |
| Lock Style | Ball |
| Industry Applications | Chemical Processing Construction Food and Beverage Forestry Industrial Plants Maintenance and Repair Operations Marine and Defense Oil and Gas Transportation Utility |
