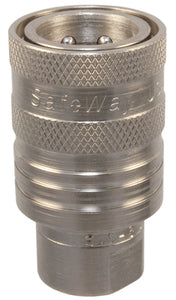

S45-15P | 1/2" Female Body Half Coupler 3/4" - 16 ORB

Material Steel
Valve Type Poppet (O-ring Seal)
Seal Material Nitrile (Buna-N)
Temperature Range (å¼F) -40 to 250
Coupler Size (Inch) 1/2
Coupler Size (mm) 12.5
Rated Flow (GPM) 12.0
Rated Flow (L/Min) 45
Body Length (Inch) 2.682
Diameter (Inch) 1.500
Wrench Flat (Inch) 0.930
Diameter (Inch) 1.059
Description Body Half
Thread 3/4-16 Female ORB
Body Size (in) 1/2
Maximum Operating Pressure (psi) 3,000
Lock Style Ball
Features One hand connect and disconnect
Industry Applications Construction
