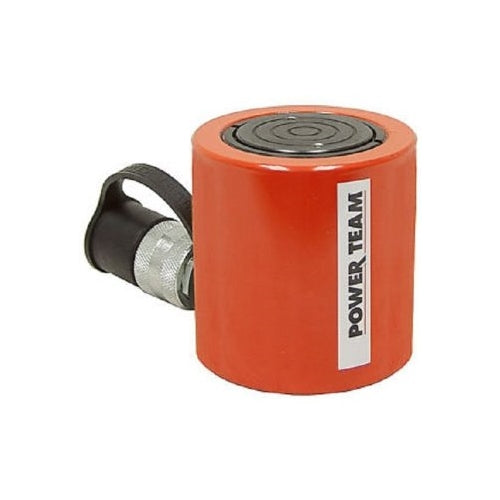

RSS101 | 10 Ton Hydraulic 1.5" Single Acting Cylinder, Spring-Return Shorty

$0.00
IDEAL FOR CONFINED AREASåÊ
  • Power Tech plated piston rods and gland nuts resist scoring and corrosion.
  • Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
  • Coupler on 10 thru 50 ton models is angled upward 5å¡ for added clearance.
  • Grooved piston top keeps load from sliding.
  • Cylinders can be ‰ÛÏdead-ended‰۝ at full capacity.
Cylinder Capacity: 10 Tons
Stroke: 1-1/2"
Oil Capacity: Push - 3.4 cu. in.
Return - N/A
Bore Diameter: 1-11/16"
Cylinder Effective Area: Push - 2.24 sq. in.
Internal Pressure at Capacity: Push - 8,943 psi
Tons at 10,000 psi: Push - 11.2

åÊ

×

Call for Price
