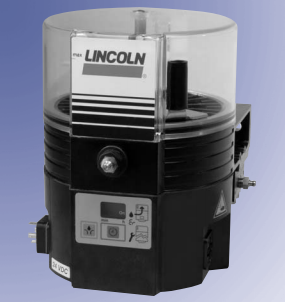

P40191402574 | Electric Grease Pump QLS 401 Series

$1,328.44
Operating Temp.: -13 F to 158 F
Reservoir Capacity: 61 cu. in. / 1.0 L / 2.0 L
Protection: NEMA 4
Lubrication Cycle Time: AC 20 min. to 60 hrs.
DC 4 min. to 6 hrs.
Number of Cycles: For VDC: 1 to 5 cycles
For VAC - SSV6/SSV8: 1 to 3 cycles
For SSV12/SSV18:  1 cycle
Timer Memory: Indefinite
Max. Operating Pressure 3000 psig
Output per Outlet & Cycle: Approx. 0.012 cu. in.
Lubricant: NLGI 2 grease



Model Specifications

Valve Type SSV18
Valve Mount Back
Voltage 24 VDC
Cable 30 ft.





Note:  Product image is for representation only.

×

Call for Price
