P40162801114 | Electric Grease Pump QLS 401 Series
$1,355.69
Operating Temp.: | -13 F to 158 F |
Reservoir Capacity: | 61 cu. in. / 1.0 L / 2.0 L |
Protection: | NEMA 4 |
Lubrication Cycle Time: | AC 20 min. to 60 hrs. DC 4 min. to 6 hrs. |
Number of Cycles: | For VDC: 1 to 5 cycles For VAC - SSV6/SSV8: 1 to 3 cycles For SSV12/SSV18: 1 cycle |
Timer Memory: | Indefinite |
Max. Operating Pressure | 3000 psig |
Output per Outlet & Cycle: | Approx. 0.012 cu. in. |
Lubricant: | NLGI 2 grease |
Model Specifications
Valve Type | SSV12 |
Valve Mount | Bottom |
Voltage | 230 VAC-UL |
Cable | None |

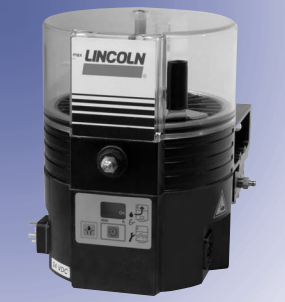

Note: Product image is for representation only.
