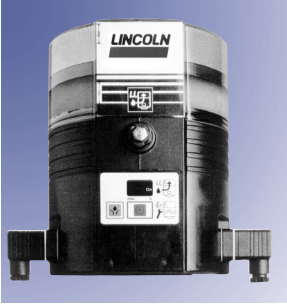

P30162611114 | Electric Grease Pump QLS 301 Series

$1,296.59
Operating Temp.: -10 F to 158 F
Reservoir Capacity: 61 cu. in. / 1.0 L
Protection: NEMA 4
Lubrication Cycle Time: AC:  20 min. to 60 hrs.
DC:  4 min. to 60 hrs.
Number of Cycles: For VDC:  1 to 5 cycles
For VAC - SSV6/SSV8:  1 to 3 cycles
For SSV12/SSV18:  1 cycle
Timer Memory: Indefinite
Max. Operating Pressure 3000 psig
Output per Outlet & Cycle: Approx. 0.012 cu. in.
Lubricant: NLGI 2 grease



Model Specifications

Valve Type SSV12
Valve Mount Bottom
Voltage 120 AC
Cable None





Note:  Product image is for representation only.

×
