94412 | Electric Grease Pump P203 Series 12 VDC

$1,379.00

Electric grease pump with integrated on/off controller.

Output/Min Per Element** 0.171 cu. in.
Lubricant Outlet 1/8" NPT (F)
Max. System Operating Pressure 5000 psig
Enclosure Rating IP6K9K*
Operating Temp. Range Min. -13 F / -25 C to Max. 158 F / 70 C
Reservoir Capacity 2-, 4-, 8- or 15-liter ***
Reservoir Fill Method By grease fitting
Pressure Relief Valve 4000 psi +/- 250 psi

*    Protected from water sprayed in all directions.
**  Single 6 mm element standard; to increase pump output, add one or two additional element(s) #600-26876-2 and relief valve #270864
*** Pressure relief Valve included with these models.

Model Specifications

Electrical Requirements 12 VDC / 3.5 Amps
Interval Timer Setting - On Time* (2 min. increments) Minimum 2 minutes
Interval Timer Setting - On Time* (2 min. increments) Maximum 30 minutes
Interval Timer Setting - Off Time (1 hr. increment) Minimum 1 hour
Interval Timer Setting - Off Time (1 hr. increment) Maximum 15 hours
Reservoir Capacity 8 lbs / 3.6 kg / 4 liter

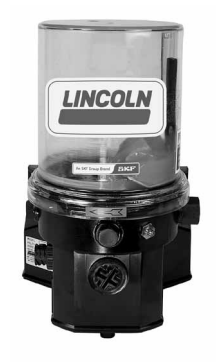

NOTE:  Product images are for representation only.

×
