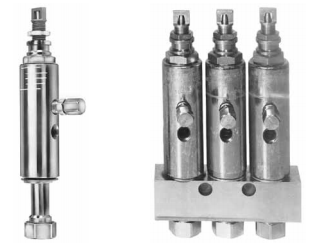

81770-1 | Centro-Matic SL-1 Series Grease Injector Assembly
$173.39
- For single-line, high-pressure central lubrication system.
- For dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI No. 2 (refer to Design Guide).
- Output is externally adjustable.
- Indicator stem permits visual check of injector operation.
- May be combined in a circuit of injectors SL-32, SL-33, SL-V, SL-V XL and/or SL-11.
- Individual injectors can be easily removed for inspection or replacement.
- Available in stainless steel SAE 316, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel.
| Output Min./Max. | 0.008 cu. in. / 0.080 cu. in. |
| Operating Pressure Min./Max. | 1850 psig / 3500 psig |
| Operating Pressure - Typical | 2500 psig |
| Operating Pressure - Vent | 600 psig |
| Manifold Inlet Connection | 3/8" NPTF (F) |
| Injector Outlet Connection | 1/8" NPTF (F) |
| Material | Number of Outlets | A Dimension | B Dimension |
| Carbon Steel | 1 | Single Mounting Hole | 2 1/2" |
Notes:
1. Injector manifolds have 13/32" (10.3mm) dia.mounting holes for 3/8" bolt.
2. Injectors have flouroelastomer packings. Check compatibility with synthetic lubricants.
3. Injector rated for 350°F (176°C) max. ambient temperature, depending on lubricant used.
4. Injectors include fitting for filling feedlines via alternate outlet port.
5. Output with adjustment screw hand-tightened is .009 cu. in. Maximum output is achieved with eight turns at .009 cu. in./turn.
Note: Product images are for representation only.
