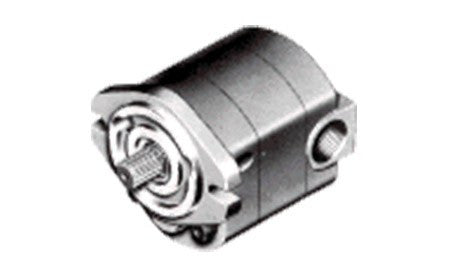

360127 | Hydraulic Gear Pump 40 Series 40P010 RAASA

$362.54
  • Rated working pressure: 3000 psi
  • Max. shock & surge pressure: 3500 psi
  • Max. flow rate (delivery): 17.5 GPM
  • Max speed (continuous): 3600 RPM
  • Max. horse power: 41 HP
  • Mounting: SAE "A" size 2-bolt
  • 20 psi pump seal

Displacement
(Cubic Inch / Revolution)

1000 (RPM) -
Theoretical Flow Rate (GPM)
1500 (RPM) -
Theoretical Flow Rate (GPM)

2000 (RPM) -
Theoretical Flow Rate (GPM)

2500 (RPM) -
Theoretical Flow Rate (GPM)
3000 (RPM) -
Theoretical Flow Rate (GPM
1.00 3.7 5.5 7.4 9.2* 11.0*

* Indicated that single rotation pump with large inlet is required.


Special Options

Rotation Shaft Size & Type

Port Location

Port Inlet Size Port Outlet Size
None Right 5/8" Spline Side 1 5/16" 1 1/16"



NOTE: Product images are for representation only.
