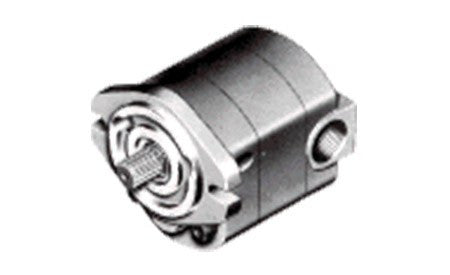

360111 | Hydraulic Gear Pump 40 Series 40P015 RAASA
$0.00
- Rated working pressure: åÊ3000 psi
- Max. shock & surge pressure: åÊ3500 psi
- Max. flow rate (delivery): åÊ17.5 GPM
- Max speed (continuous): åÊ3600 RPM
- Max. horse power: åÊ41 HP
- Mounting: åÊSAE "A" size 2-bolt
- 20 psi pump seal
åÊDisplacement |
1000 (RPM) - Theoretical Flow Rate (GPM) |
1500 (RPM) - Theoretical Flow Rate (GPM) |
2000 (RPM) - |
2500 (RPM) - Theoretical Flow Rate (GPM) |
3000 (RPM) - Theoretical Flow Rate (GPM |
1.5 | 5.8 | 8.8 | 11.7* | 14.6* | 17.5* |
* Indicated that single rotation pump with large inlet is required.åÊ
åÊ
åÊSpecial Options |
Rotation | Shaft Size & Type |
Port Location |
Port Inlet Size | Port Outlet Size |
None | Right | 5/8"åÊSpline | Side | 1åÊ5/16" | 1 1/16" |
åÊ
åÊ
NOTE: åÊProduct images are for representation only.
