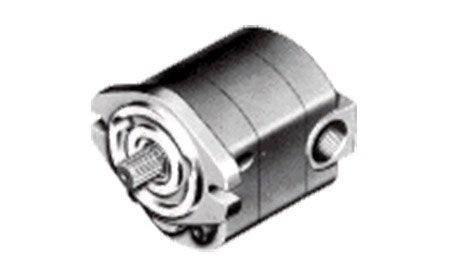

360006 | Hydraulic Gear Pump 40 Series 40PH12 DACSC

$0.00
  • Rated working pressure: åÊ3000 psi
  • Max. shock & surge pressure: åÊ3500 psi
  • Max. flow rate (delivery): åÊ17.5 GPM
  • Max speed (continuous): åÊ3600 RPM
  • Max. horse power: åÊ41 HP
  • Mounting: åÊSAE "A" size 2-bolt

åÊDisplacement
(Cubic Inch / Revolution)

1000 (RPM) -
Theoretical Flow Rate (GPM)
1500 (RPM) -
Theoretical Flow Rate (GPM)

2000 (RPM) -
Theoretical Flow Rate (GPM)

2500 (RPM) -
Theoretical Flow Rate (GPM)
3000 (RPM) -
Theoretical Flow Rate (GPM
1.25 4.9 7.3 9.7 12.1* 14.6*

åÊ* Indicates that single rotation pump with large inlet is required.

åÊ

åÊSpecial Options

Rotation Shaft Size & Type

Port Location

Port Inlet Size Port Outlet Size
250 psi Shaft Seal Dual 5/8" Dia.åÊKeyed Side 1åÊ1/16" 1 1/16"

åÊ

åÊ

NOTE: åÊProduct images are for representation only.

×
