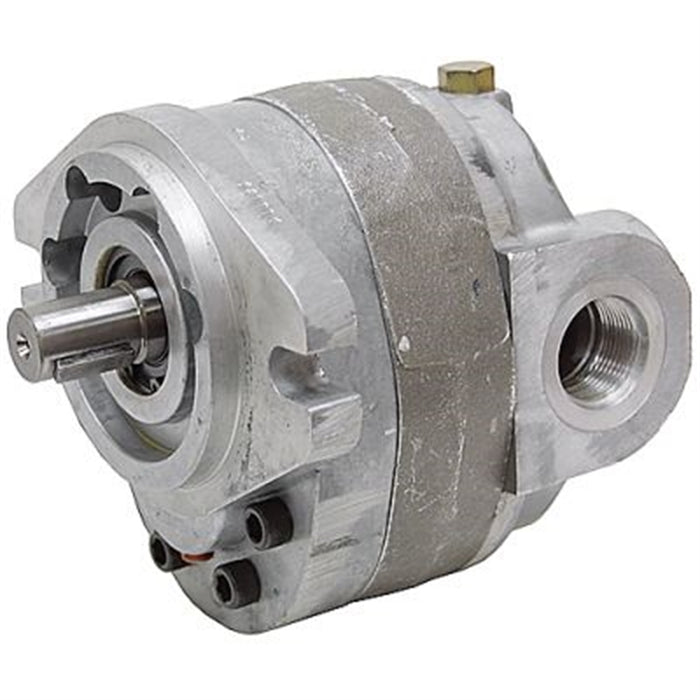

300012 | Hydraulic Pump 50 Series 50PH23 DBCRF

$1,092.29
  • Rated working pressure: 3000 psi
  • Max. shock & surge pressure: 3500 psi
  • Max. flow rate (delivery): 45 GPM
  • Max speed (continuous): Up to 3000 RPM
  • Max. horse power: 78 HP
  • Mounting: SAE "B" size 2-bolt

Displacement
(Cubic Inch / Revolution)

1000 (RPM) -
Theoretical Flow Rate (GPM)
1500 (RPM) -
Theoretical Flow Rate (GPM)

2000 (RPM) -
Theoretical Flow Rate (GPM)

2500 (RPM) -
Theoretical Flow Rate (GPM)
3000 (RPM) -
Theoretical Flow Rate (GPM
2.32 9.0 13.6 18.1 22.6* 27.1*

*Indicates that Single rotation pump with large inlet is required.


Special Options

Rotation Shaft Size & Type

Port Location

Port Inlet Size Port Outlet Size
250 psi Shaft Seal Dual 7/8" Dia. Keyed Rear 1 5/16" 1 5/16"



NOTE: Product images are for representation only.
