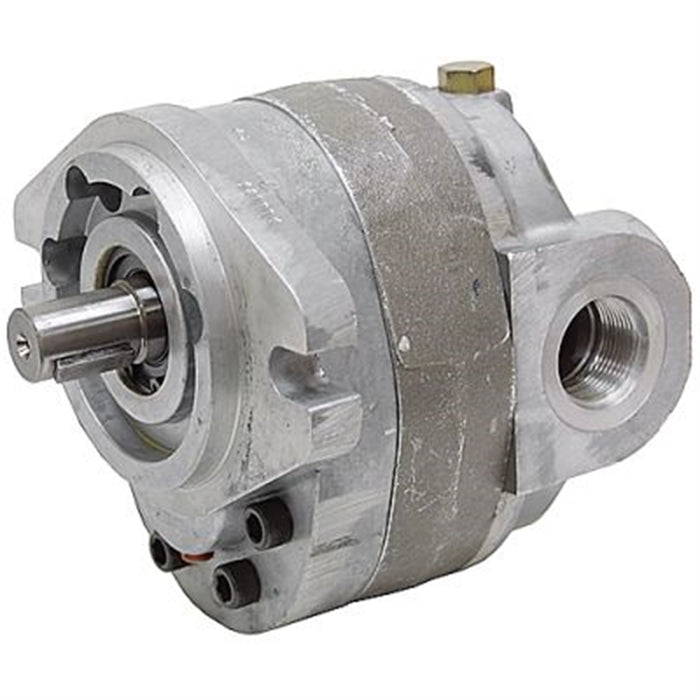

300003 | Hydraulic Gear Pump 50 Series 50P027 RBCSA
$599.36
- Rated working pressure: 3000 psi
- Max. shock & surge pressure: 3500 psi
- Max. flow rate (delivery): 45 GPM
- Max speed (continuous): Up to 3000 RPM
- Max. horse power: 78 HP
- Mounting: SAE "B" size 2-bolt
- 20 psi pump seal
Displacement |
1000 (RPM) - Theoretical Flow Rate (GPM) |
1500 (RPM) - Theoretical Flow Rate (GPM) |
2000 (RPM) - |
2500 (RPM) - Theoretical Flow Rate (GPM) |
3000 (RPM) - Theoretical Flow Rate (GPM |
2.74 | 10.7 | 16.0 | 21.4* | 26.7* | 32.0* |
*Indicates that Single rotation pump with large inlet is required.
Special Options |
Rotation | Shaft Size & Type |
Port Location |
Port Inlet Size | Port Outlet Size |
None | Right | 7/8" Dia. Keyed | Side | 1 7/8" | 1 5/16" |
NOTE: Product images are for representation only.
