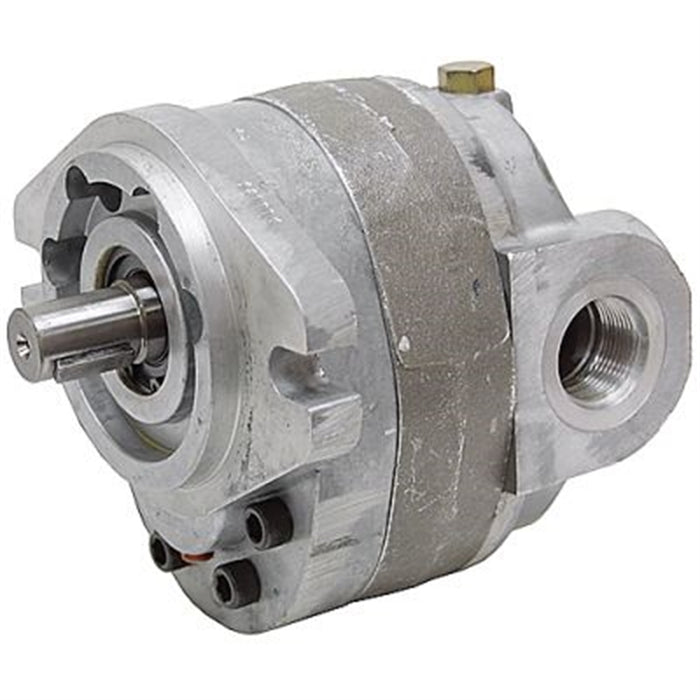

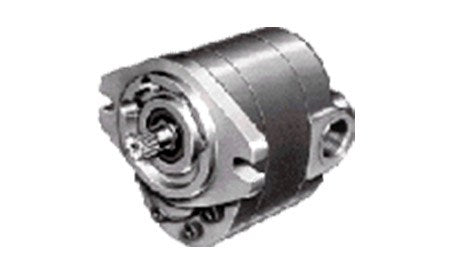

300001 | Hydraulic Gear Pump 50 Series 50P019 RBCSB

$0.00
  • Rated working pressure: åÊ3000 psi
  • Max. shock & surge pressure: åÊ3500 psi
  • Max. flow rate (delivery): åÊ45 GPM
  • Max speed (continuous): åÊUp to 3000 RPM
  • Max. horse power: åÊ78 HP
  • Mounting: åÊSAE "B" size 2-bolt
  • 20 psi pump seal

åÊDisplacement
(Cubic Inch / Revolution)

1000 (RPM) -
Theoretical Flow Rate (GPM)
1500 (RPM) -
Theoretical Flow Rate (GPM)

2000 (RPM) -
Theoretical Flow Rate (GPM)

2500 (RPM) -
Theoretical Flow Rate (GPM)
3000 (RPM) -
Theoretical Flow Rate (GPM
1.95 7.6 11.4 15.2 19.0* 22.8*

*Indicates that Single rotation pump with large inlet is required.

åÊ

åÊSpecial Options

Rotation Shaft Size & Type

Port Location

Port Inlet Size Port Outlet Size
None Right 7/8" Dia. Keyed Side 1 5/8" 1 5/16"

åÊ

åÊ

NOTE: åÊProduct images are for representation only.

×

Call for Price
