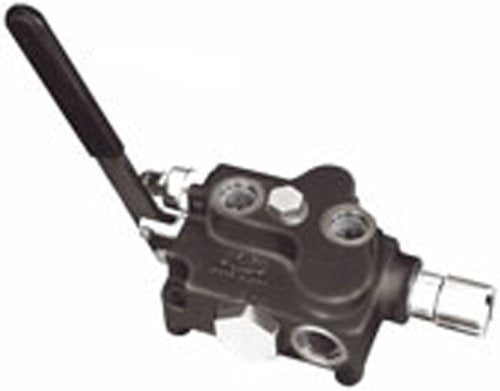

160040 | Directional Valve AD Series SA2
The Cross ADåÊSeriesåÊdirectional valve offers differential style relief, load checks and excellent metering in a compact, economical model with parallel flow paths.
- 3000 psi operating pressure
- 15 GPM flow rate
- 7/8-14 (SAE #10) inlet and outlet
- 3/4-16 (SAE #8) work ports
- Adjustment built-in relief valve, set at 2000 psi
- Parallel operation
- Load holding cylinder port check valves
- Built-in power beyond capability
- Single spool 3-position, 4-way
- Field conversion kits part numbers:
- 1V2566 - Power beyond sleeve (7/8-14, SAE#10)
- 1V2572 - Closed center plug
- 1R0035 - No relief plug for closed center
- 1V2682 - 2 position with spring center manual detent kit
- 1V2683 - 3 position manual detent kit
* For operating double-acting cylinders or a reversible hydraulic motor.
NOTE: åÊProduct images are for representation only.
