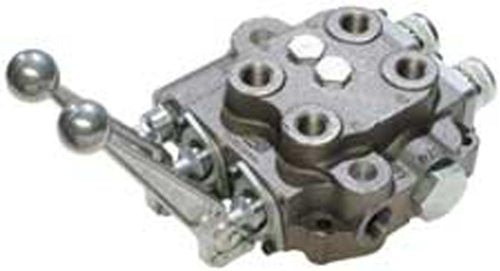

143799 | Directional Control Valve BA Series SBAF2


The Cross SBA series hydraulic control valveåÊis a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports. åÊFully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.


  • 2500 psiåÊoperating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4‰۝ NPTF in and out, 1/2‰۝ NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Double spool, 1st spool 4-position float, 2nd spool 3-position

Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4‰۝ NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.


NOTE: åÊProduct images are for representation only.
