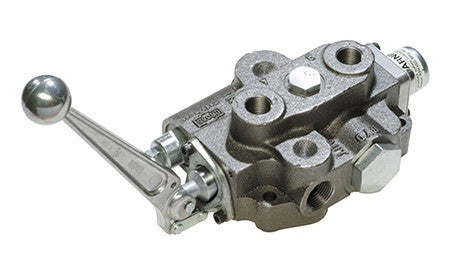

132269 | Directional Control Valve BA Series SBA2-CC
The Cross SBA series hydraulic control valveåÊis a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports. åÊFully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.
- 2500 psiåÊoperating pressure for SBA
- 30 GPM flow rate
- SBA: 3/4‰ NPTF in and out, 1/2‰ NPTF work ports
- Adjustable built-in relief set at 2000 psi
- Closed center
- Built-in load checks for lifting
- Single spool, 3-position, 4-way
Field conversion kits:
- 1V0208 Power Beyond Sleeve (3/4‰ NPTF)
- 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
- 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
- 1V1626 Heavy Duty Handle Assembly
- 1V1485-02 Single Handle Actuator for 2 & 3 spool models
* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.
NOTE: åÊProduct images are for representation only.
