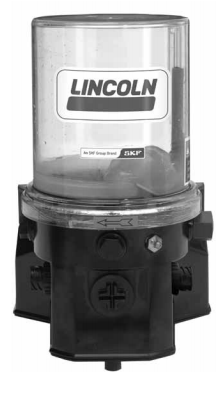

94923 | Electric Grease Pump P203 Series RemoteLinc

$2,960.01
  • Easily interfaces with OEM and aftermarket telematic systems
  • Allows users to:
    • Remotely monitor and detect low lubricant levels and system faults.
    • Reduce cost by receiving immediate, real-time alerts when lubricant is low or the system is in fault.

Electrical Requirements

Input:

12 VDC @ 3.5 amps, 24 VDC @ 2 amps
94-265 VAC (50 to 60 Hz)

Enclosure Rating:

IP6K9K *

Interval Between Lube Cycles:

Min. 4 minutes / Max. 15 hours

Pump Output:

0.171 cu. in./min.

Outlet Connection:

1/8" NPT (F)

Reservoir Capacity:

2-, 4-, 8- or 15-liter**

Maximum Recommended Operating Pressure:

5000 psi

Lubricant:

Greases NLGI grade 2 (depending on operating temperature and type of lubricant)

Temperature Range:

-13F to +158F / -25C to +70C

Pressure Relief Valve:

4000 psi, +/- 250 psi





Model Specifications

Voltage Reservoir Capacity
24 VDC 15 Liters

Proximity switch is not included and must be ordered separately.
