94822 | Electric Grease Pump P203 Series 24 VDC

$1,908.61

Has low-level sensor and integrated controller for feedback monitoring.

Electrical Requirements

Input: 12 VDC @ 3.5 amps, 24 VDC @ 2 amps 94-265 VAC (50 to 60 Hz)
Enclosure Rating: IP6K9K *
Interval Between Lube Cycles: Min. 4 minutes / Max. 15 hours
Pump Output: 0.171 cu. in./min.  /  2.8 cc/min.
Outlet Connection: 1/8" NPT (F)
Reservoir Capacity: 2-, 4-, 8- or 15 liter **
Max. Recommended Operating Pressure: 5000 psi
Lubricant: Greases NLGI grade 2 (depending on operating temperature and type of lubricant)
Temperature Range: -13F to 158F / -25C to 70C
Pressure Relief Valve: 4000 psi, +/- 250 psi

Note:  Do not use pump without pressure relief valve.
* Protected from water sprayed in all directions.



Model Specifications

Description P203-8XLBO-1K6-24-2A6.15-M13-A+SV
Power 24 VDC
Interval Between Lube Cycle Min. 4 - 60
Interval Between Lube Cycle Hrs. 1 - 15
Alarm Time Min. 5 or 30
Reservoir Capacity Liters / Cu. In. / Lbs. 8 / 488 / 16

* Does not come with the proximity switch, which must be ordered separately.

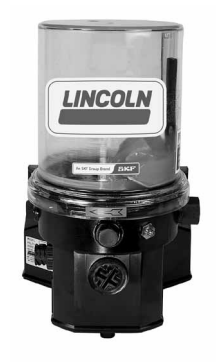

NOTE:  Product images are for representation only.

×
