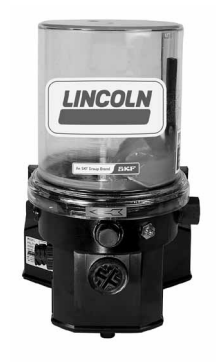

94212 | Electric Grease Pump P203 Series 12 VDC
$991.43
Electric grease pump without integrated on/off controller.
| Output/Min Per Element** | 0.171 cu. in. |
| Lubricant Outlet | 1/8" NPT (F) |
| Max. System Operating Pressure | 5000 psig |
| Enclosure Rating | IP6K9K* |
| Operating Temp. Range | Min. -13 F / -25 C to Max. 158 F / 70 C |
| Reservoir Capacity | 2-, 4-, 8- or 15-liter *** |
| Reservoir Fill Method | By grease fitting |
| Pressure Relief Valve | 4000 psi +/- 250 psi |
* Protected from water sprayed in all directions.
** Single 6 mm element standard; to increase pump output, add one or two additional element(s) #600-26876-2 and relief valve #270864
*** Pressure relief Valve included with these models.
Model Specifications
| Electrical Requirements | 12 VDC / 3.5 Amps |
| Interval Timer Setting - On Time* (2 min. increments) | Minimum 2 minutes |
| Interval Timer Setting - On Time* (2 min. increments) | Maximum 30 minutes |
| Interval Timer Setting - Off Time (1 hr. increment) | Minimum 1 hour |
| Interval Timer Setting - Off Time (1 hr. increment) | Maximum 15 hours |
| Reservoir Capacity | 4 lbs / 1.8 kg / 2 liter |
NOTE: Product images are for representation only.
