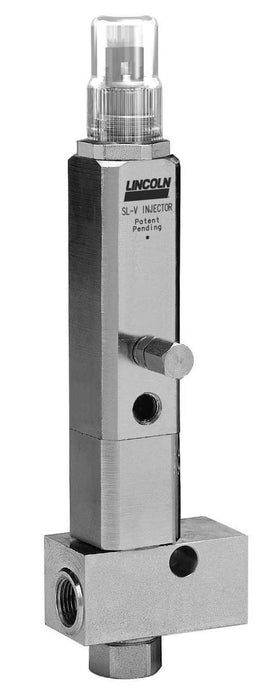

85770-3 | Grease Injector SL-V Series for Centro-Matic Lubrication System
$357.21
- For single-line, high-pressure central lubrication system.
- For dispensing lubricants compatible with polyurethane seals up to NLGI No. 2 (refer to Design Guide).
- Output is externally adjustable.
- Indicator stem permits visual check of injector operation.
- May be combined in a circuit of injectors SL-32, SL-33, SL-1, SL-V XL and/or SL-11.
- Individual injectors can be easily removed for inspection or replacement.
- Each SL-V injector includes a clear polycarbonate protective cap.
Material | Carbon Steel |
Output Min. / Max. | 0.015 cu. in. / 0.08 cu. in. |
Operating Pressure Min. / Max. | 1850 psig / 6000 psig |
Operating Pressure - Typical | 2500 psig |
Operating Pressure - Vent | 1000 psig |
Manifold Inlet | 3/8" NPTF |
Injectout Outlet | 1/8" NPTF |
Model Specifications
Type | Three Injector Manifold |
Number of Outlets | 3 |
A Dimension | 1 1/4" |
B Dimension | 4 1/4" |
Notes:
- Injector manifolds have 13⁄32" (10.3 mm) dia. mounting holes for 3⁄8" bolt.
- Injectors have polyurethane seals Check compatibility with synthetic lubricants.
- Injector rated for 180°F (80°C) max. ambient temperature, depending on lubricant used.
- Injectors include fitting for filling feedlines via alternate outlet port.
- Output with adjustment screw hand-tightened is .015 cu. in. Maximum output is achieved with five turns at .014 cu. in./turn.
Product images are for representation only.
