85460 | Centro-Matic Bucket Pump
$3,292.68
- Rugged 14-gauge steel walls
- Large 1" NPT inlet for fast filling, 1¼" overflow outlet
- New 2” foam follower that virtually eliminates grease bypass
- New vent valve to bucket coupling
- Thick mounting ring that withstands severe vibration
- These buckets work with hydraulic, air and electric pumps.
- Includes installed visual low level and follower plate assembly.
| Lubricant/Air Ratio: | 50:1 |
| Output/Min @ 100 PSIG Air: | 30 cu. in. |
| Reservoir Capacity: | 60 lb. / 1800 cu. in. |
| Air Inlet: | 3/8" NPTF (F) |
| Lube Outlet: | 3/4" NPTF (M) at Hose |
| Typical System Oper. Press. (Min./Max.): | 1200 psig / 3500 psig |
| Dimensions (HxWxL): | 31 3/4" x 15 7/16" x 15 9/16" |
| Filling Method: | Bulk |
| Reservoir: | Steel |
Notes:
- Pump requires 3-way air valve.
- Air consumption @ 100 psi is 0.42 CFM per cycle.
- Optional Model 92597 follower available.

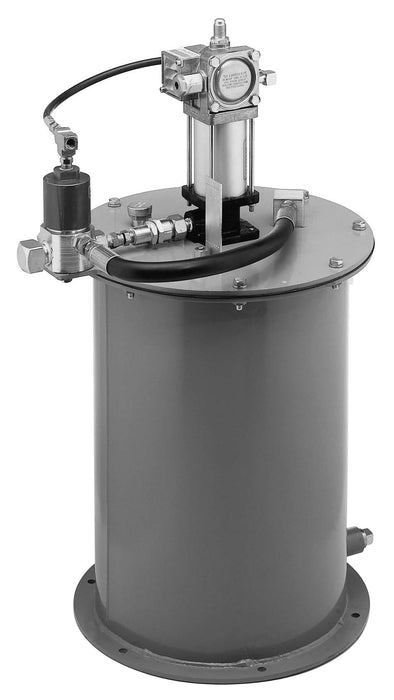

Product image is for representation only.
