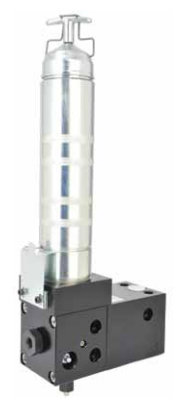

85446 | HTL 201US Continuous Hydraulic Lubricator Pump for Hammers

  • Delivers precise lubrication every time the hammer operates
  • Increase productivity - no work interruption
  • Reduces machine repairs and replacement costs
  • Mounts directly on the hydraulic device and lubricates continuously while in operation
  • Continuous lubrication with small quantities during the working cycle • Compact design
  • Independent – the pump stays with the tool that requires lubrication even if the carrier unit is exchanged.
  • 14.5 oz. cartridge can be replaced or the reservoir bulk filled with the special built-in adapter making it ideal for OEMs or rental fleets that specify a specific grease or chisel paste on their equipment.
  • Low lubricant level indicator lets operator know when to fill or change cartridges.
Operating Temperature: -13 F to + 140 F
Hydraulic Port: G 1/4 BSPP O-ring
Pump Outlet: G 1/4 BSPP O-ring
Max. Hydraulic Operating Pressure: 1160 to 3045 psi
Max. Lube Outlet Pressure: 1740 to 3916 psi
Output per Stroke: 0.13 cu. in. / stroke to 0.41 cu. in. / stroke
Grease Reservoir Volume: 14.5 oz.



Product image is for representation only.
