85425 | HTL Hydraulic Lubricator Pump for Hammers

$1,310.84

Applications: construction OEMs, hydraulic hammer retrofits, demolition attachments and medium to larger breakers/hammers

  • Withstands vibrations of an operating hammer
  • Travels with hammer, perfect for rental equipment or hammers used on various machines
  • Hydraulic power supply
  • Pedal-actuated
  • Attached grease fitting allows for manual filling and fast priming of pump
  • Uses standard 14.5-ounce grease cartridges and handles chisel paste
  • To adjust output, metering plugs are available (0.006 in³ [0.1cm³] to 0.031 in³ [0.5cm³])
  • Convenient visual low level indicator
Operating Temperature: -10 F to +180 F
Hydraulic Port: SAE #4 (7/16-20 UNF) O-ring
Pump Outlet: SAE #4 (7/16-20 UNF) O-ring



Model Specifications

Hydraulic Ratio at Max. Output & Pressure*: 0.7:1
Max. Hydraulic Operating Pressure: 5000 psig
Max. Recharge (or Vent) Pressure: 1100 psig
Max. Lube Outlet Pressure: 6500 psig
Output per Stroke (Std. Metering Plug): 0.018 cu. in. Std.
Grease Reservoir Volume: 14.5 oz.

* Optional metering plugs are available for different output volume.  See Pump Output Adjustment parts (271924, 271925, 271926, 271927).

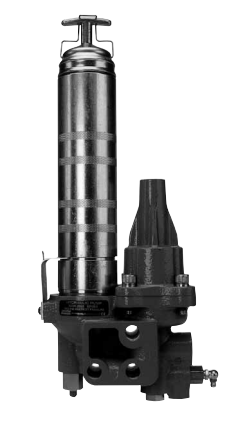

Product image is for representation only.

×
