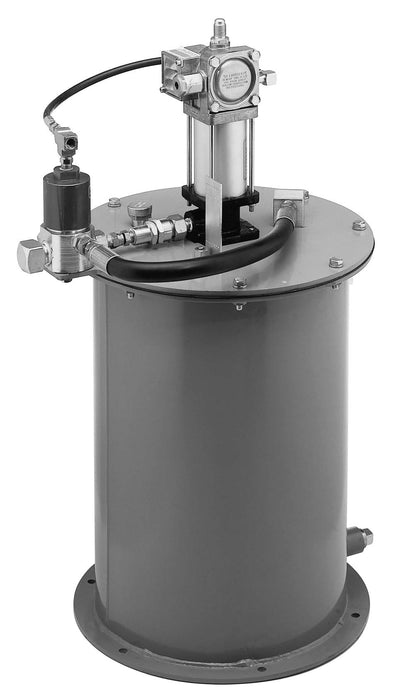

84050 | Centro-Matic Bucket Pump

$2,185.45
  • Rugged 14-gauge steel walls
  • Large 1" NPT inlet for fast filling, 1¼" overflow outlet
  • New 2” foam follower that virtually eliminates grease bypass
  • New vent valve to bucket coupling
  • Thick mounting ring that withstands severe vibration
  • These buckets work with hydraulic, air and electric pumps.
Lubricant/Air Ratio: 50:1
Output/Min @ 100 PSIG Air: 30 cu. in.
Reservoir Capacity: 60 lb. / 1800 cu. in.
Air Inlet: 3/8" NPTF (F)
Lube Outlet: 3/4" NPTF (M) at Hose
Typical System Oper. Press. (Min./Max.): 1200 psig / 3500 psig
Dimensions (HxWxL): 31 3/4" x 15 7/16" x 15 9/16"
Filling Method: Bulk
Reservoir: Steel

Notes:

  1. Pump requires 3-way air valve.
  2. Air consumption @ 100 psi is 0.42 CFM per cycle.
  3. Optional Model 92597 follower available.
×
