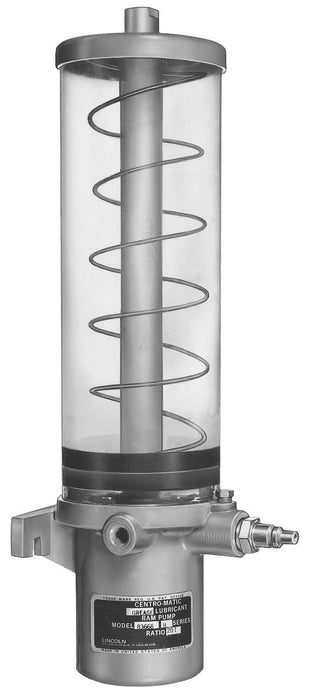

83668 | Centro-Matic Air-Operated (Single Stroke) Grease Pump

$883.60

Pump discharges lubricant on air-powered forward stroke and vents on springpowered return stroke through built-in check/vent valve. Reservoir is translucent with spring-loaded follower. Includes filler fitting for refilling reservoir with Model 81834 or other manual pump equipped with Model 645006 coupler.

Lubricant / Air Ratio: 20:1
Max. Output: 0.45 cu. in.
Reservoir Capacity: 4 lb. / 120 cu. in.
Reservoir Temp Range: 0 F to 150 F
Air Inlet: 1/4" NPTF (F)
Lube Outlet: 1/4" NPTF (F)
Lubricant Oper. Pressure (Min. / Max.): 1200 psig / 3500 psig
Dimensions (HxWxL): 18 1/2" x 5 1/4" x 6"
Air Valve Required: 3-way

Note:  Air consumption @ 100 psi is 0.15 CFM per stroke.



Timer Specifications

Cycle Time (Min./Max.): 20 sec. / 24 hr.
On Time (Min./Max.): 10 sec. / 1 min.
Power Requirements: 120 VAC, 60 hz
Ambient Oper. Temp. Range: 10 F to +150 F





Product image is for representation only.
