83667 | Air-Operated (Single Stroke) Oil Pump
$818.94

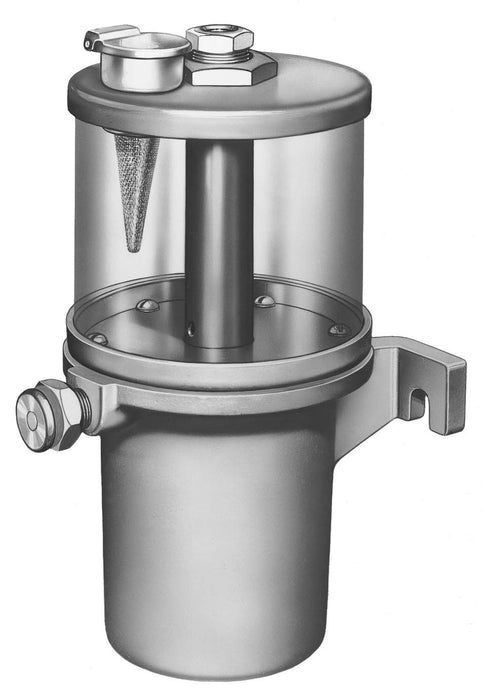

Pump discharges lubricant on air-powered forward stroke and vents on springpowered return stroke through built-in check/vent valve. Translucent reservoir is refilled through filler cap with strainer.
| Lubricant/Air Ratio: | 20:1 |
| Max. Output: | 0.45 cu. in. |
| Reservoir Capacity: | 4 1/2 pint / 123 cu. in. |
| Air Inlet: | 1/4" NPTF (F) |
| Lub Outlet: | 1/4" NPTF (F) |
| Lubricant Oper. Pressure (Min./Max.): | 750 psig / 1000 psig |
| Dimensions (HxWxL): | 18 1/2" x 5 1/2" 6" |
| Air Valve Required: | 3-way |
Note: Air consumption @ 100 psi is 0.15 CFM per stroke. Check compatibility when using synthetic oils.
