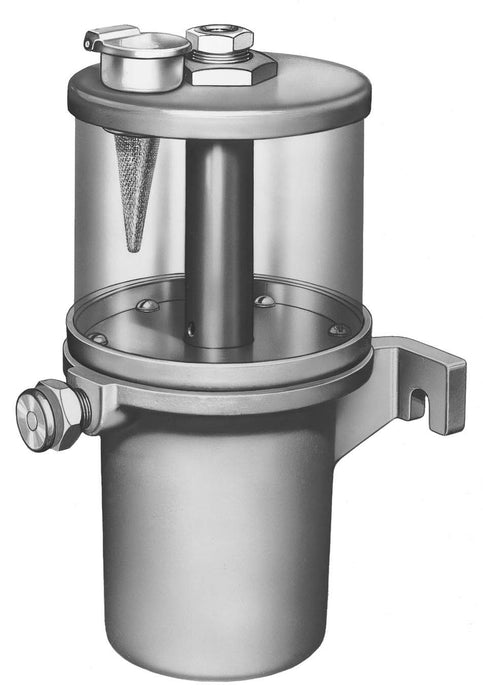

82885 | Air-Operated (Single Stroke) Oil Pump

$522.79

Pump discharges lubricant on air-powered forward stroke and vents on springpowered return stroke through built-in check/vent valve. Translucent reservoir is refilled through filler cap with strainer.

Lubricant/Air Ratio: 20:1
Max. Output: 0.45 cu. in.
Reservoir Capacity: 1 1/4 pint / 36 cu. in.
Air Inlet: 1/4" NPTF (F)
Lub Outlet: 1/4" NPTF (F)
Lubricant Oper. Pressure (Min./Max.): 750 psig / 1000 psig
Dimensions (HxWxL): 10 3/8" x 5 1/4" 6"
Air Valve Required: 3-way

Note:  Air consumption @ 100 psi is 0.15 CFM per stroke.  Check compatibility when using synthetic oils.

×
