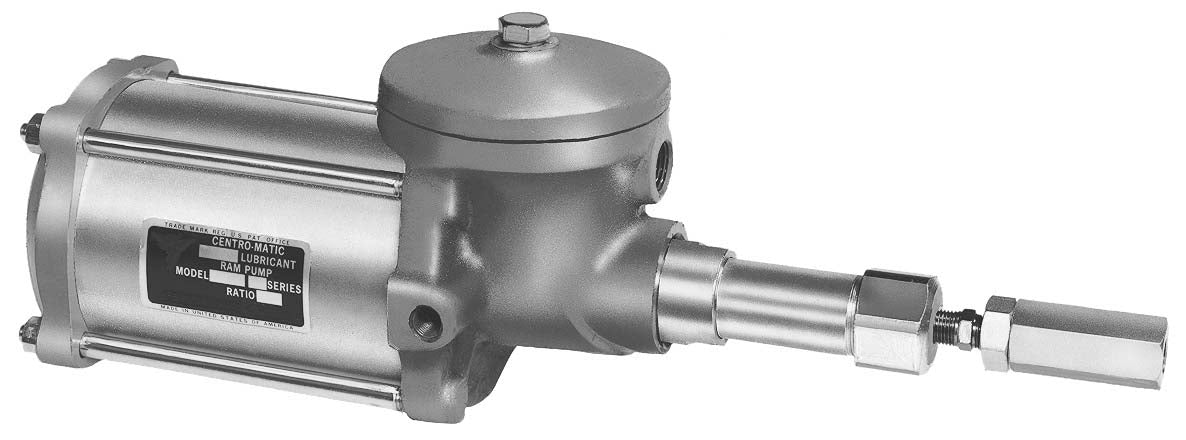

82676 | Air-Operated (Single Stroke) Oil Pump

$1,163.26

Same as Model 82570 except for use with external oil supply through ½" NPT(F) oil inlet (maximum head pressure 80 psi).

Lubricant/Air Ratio: 20:1
Max. Output: 2.4 cu. in.
Reservoir Capacity: Remote
Air Inlet: 1/4" NPTF (F)
Lube Outlet: 1/4" NPTF (F)
Lubricant Oper. Pressure (Min./Max.): 750 psig / 1000 psig
Dimensions (HxWxL): 18 1/2" x 5 3/4" x 21"
Air Valve Required: 4-way

Note:  Air consumption @ 100 psi is 0.15 CFM per stroke.  Check compatibility when using synthetic oils.

×
