80090 | P653S Electric Pump for Centro-Matic Lubrication Systems
$3,430.77
| Electrical Data | DC Pumps | AC Pumps |
| Incoming voltage: | 19 to 31 VDC | 100 to 240 VAC |
| Maximum current: | 10 amps | 1.7 amps |
| Frequency: | - | 47 63 Hz |
| Operating Temperature: | -40F to +158F | 32F to 122 F |
Common Electrical Data for DC and AC Pumps
| Minimum pause time: | 4 min. |
| Maximum pause time: | 59 hrs. 59 min. |
| Pause time increments: | 1 hr. or 1 min. |
| Maximum pumping time: | 12 min. |
Operating Pressure With:
| Pressure switch (fixed): | 3,500 psig |
| Pressure transducer (adj.): | 1,400 to 4,600 psig |
| End of line pressure switch & transducer setting (not adj.): | 2,500 psig |
| Number of outlets: | 1 |
| Output: | 1.5 cu. in./min. |
Pump Elements
| Piston diameter: | 7 mm |
| Number of pumping elements (connected together): | 3 |
| Protection: | 1P 6K9K |
NOTE: All models are designed for grease and include stirring paddle and low-level detection. Pumps include remote signaling cable, relief valve, electrical connectors and external pressure switch or transducer (as indicated for each model).
Model Specifications
| 24 VDC | Yes |
| 120/230 VAC 50/60 Hz | No |
| Resevoir Size (L) | 8 |
| Follower Plate | No |
| Internal Pressure Switch | Yes |
| Internal Pressure Transducer | No |
| Internal & End-of-Line Pressure Switch | No |
| Internal & End-of-Line Pressure Transducer | No |

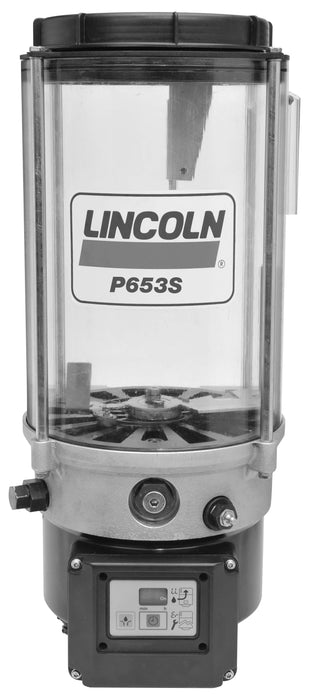

Product image is for representation only.
