644-46173-7 | Electric Grease Pump P203 AC Series


Automatically adjusts to handle a variety of electrical supply voltages (between 94- and 265-volt, 50 to 60 Hz).

Input Voltage: 94 0 265 VAC, 3 Amps
Operating Temperature: -13 F to 158 F / -25 C to 70 C
Number & Element Size: 1 - 6 mm
Reservoir Capacity: 2-, 4-, 8- or 15- liter*
Output per Minute: Approx. 2.8 cc
Lubricant: Greases up to NGLI #2 / Oil with at least 40 cSt
Max. Operating Pressure: 5076 psi

* Contact us for 15-liter reservoir models

Model Specifications

Description: P203-4XNBO-1K6-AC-1A1.01 (UL)-A+SV
Res. Cap.: 4 liter
Grease or Oil: Grease
Low Level Control: No
Printed Circuit Board: No

"(UL)" in the description refers to UL-approved, CSA-certified pumps.
Pumps with "-A+SV" come complete with the 1/8" NPT adapter and pressure relief valve.

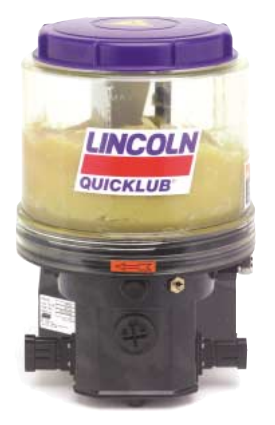

Product image is for representation only.
