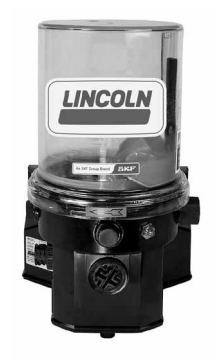

644-40873-1 | Electric Grease Pump P203 Series 120 VAC
Has low-level sensor and integrated controller for feedback monitoring.
|Input:||12 VDC @ 3.5 amps, 24 VDC @ 2 amps 94-265 VAC (50 to 60 Hz)|
|Enclosure Rating:||IP6K9K *|
|Interval Between Lube Cycles:||Min. 4 minutes / Max. 15 hours|
|Pump Output:||0.171 cu. in./min. / 2.8 cc/min.|
|Outlet Connection:||1/8" NPT (F)|
|Reservoir Capacity:||2-, 4-, 8- or 15 liter **|
|Max. Recommended Operating Pressure:||5000 psi|
|Lubricant:||Greases NLGI grade 2 (depending on operating temperature and type of lubricant)|
|Temperature Range:||-13F to 158F / -25C to 70C|
|Pressure Relief Valve:||4000 psi, +/- 250 psi|
Note: Do not use pump without pressure relief valve.
* Protected from water sprayed in all directions.
|Interval Between Lube Cycle Min.||4 - 60|
|Interval Between Lube Cycle Hrs.||1 - 15|
|Alarm Time Min.||5 or 30|
|Reservoir Capacity Liters / Cu. In. / Lbs.||8 / 488 / 16|
* Does not come with the pressure relief valve. It must be ordered separately and is recommended. The 1/8" NPT adapter (304-19614-1) is also not included and must be ordered separately, if required. Does not come with the proximity switch, which must be ordered separately.
NOTE: Product images are for representation only.
