Filters

Brand

Quick Couplers

Material Steel
Valve Type Poppet (O-ring Seal)
Seal Material Nitrile (Buna-N)
Temperature Range (ºF) -40 to 250 ºF
Coupler Size (Inch) 1/2
Coupler Size (mm) 12.5
Rated Flow (GPM) 12.0
Rated Flow (L/Min) 45
Industry Standard Numbers ISO7241-1 Series B
Tip Length (Inch) 1.890
Diameter (Inch) 1.230
Hex (Inch) 1.060
Description Tip Half
Thread 1/2 Female Pipe
Body Size (in) 1/2
Maximum Operating Pressure (psi) 4,000
Lock Style Ball
Industry Applications Chemical Processing
Construction
Food and Beverage
Forestry
Industrial Plants
Maintenance and Repair Operations
Marine and Defense
Oil and Gas
Transportation
Utility
S101-6  |  3/4" Male Tip Half Coupler
Material Steel
Valve Type Poppet (O-ring Seal)
Seal Material Nitrile (Buna-N)
Temperature Range (ºF) -40 to 250 ºF
Coupler Size (Inch) 3/4
Coupler Size (mm) 20.0
Rated Flow (GPM) 28.0
Rated Flow (L/Min) 106
Industry Standard Numbers ISO7241-1 Series B
Tip Length (Inch) 2.260
Diameter (Inch) 1.520
Hex (Inch) 1.310
Description Tip Half
Thread 3/4 Female Pipe
Body Size (in) 3/4
Maximum Operating Pressure (psi) 3,500
Lock Style Ball
Industry Applications Chemical Processing
Construction
Food and Beverage
Forestry
Industrial Plants
Maintenance and Repair Operations
Marine and Defense
Oil and Gas
Transportation
Utility
3050-2  |  1/4" NPT Female Coupler Body
Valve Design: Ball Locking Mechanism: Threaded
Operating Temp. Range: -22 Degrees to 238 Degrees F Seal Material: Polyurethane
Coupler Body Material: Steel Coupler Finish: Zinc Plated
Coupler Interchange Type: 3000 Max. Pressure: 10, 000 psi
Parker Interchange: 3050-2 Length: 2-3/8"
Item: Hydraulic Coupler Body Sleeve Material: Steel
Coupler Body Size: 1/4" Quick Coupler Type: Hydraulic Coupler Body
Coupler Thread Size: 1/4"-18 Coupler Flow Rate: 3.0 gpm
Coupler Connection Type: MNPT Connection Type: MNPT
Pioneer Interchange: 3050-2
3010-2  |  1/4" NPT Male Coupler Nipple
Valve Design: Ball Operating Temp. Range: -22 Degrees to 238 Degrees F
Coupler Body Material: Steel Max. Pressure: 10, 000 psi
Locking Mechanism: Threaded Seal Material: Polyurethane
Coupler Interchange Type: 3000 Coupler Finish: Zinc Plated
Parker Interchange: 3010-2 Length: 1-19/64"
Item: Hydraulic Coupler Nipple Coupler Body Size: 1/4"
Quick Coupler Type: Hydraulic Coupler Nipple Coupler Thread Size: 1/4"-18
Coupler Flow Rate: 3.0 gpm Coupler Connection Type: FNPT
Connection Type: FNPT Pioneer Interchange: 3010-2

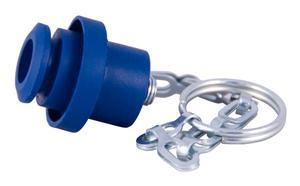

6109-20  |  1-1/4" Steel Dust Plug 10WDP
9250-4R  |  Coupling Red
9500-4  |  Lever Coupler Kit Breakaway Kit
BST-3  |  3/8" FNPT Brass Coupler Hi-Flow
DP6105-12  |  3/4" FP Male Nipple
DP6109-16  |  1" Dust Plug W-Series
FF-752-12FP  |  3/4" Nipple 3/4"-14 NPSF
LNCB65282  |  Black Hawk Quick Coupler
MI1835  |  3/8" Female Air Coupler
PD260  |  PDQ Coupler
PD343  |  PDQ Nipple
Material Steel
Valve Type Poppet (O-ring Seal)
Seal Material Nitrile (Buna-N)
Temperature Range (ºF) -40 to 250
Coupler Size (Inch) 3/8
Coupler Size (mm) 10.0
Rated Flow (GPM) 6.0
Rated Flow (L/Min) 23
Industry Standard Numbers ISO7241-1 Series B
Body Length (Inch) 2.480
Diameter (Inch) 1.390
Wrench Flat (Inch) 0.870
Diameter (Inch) 1.000
Description Body Half
Thread 3/8 Female Pipe
Body Size (in) 3/8
Maximum Operating Pressure (psi) 4,000
Lock Style Ball
Industry Applications Chemical Processing
Construction
Food and Beverage
Forestry
Industrial Plants
Maintenance and Repair Operations
Marine and Defense
Oil and Gas
Transportation
Utility
