3784070 | F2 Pump F2-70/70 - R
F2 Fixed Displacement Piston Pumps are widely used on truck applications with operating pressure up to 5000 PSI (350 BAR). These twin fl ow pumps provide two independent output flows with a single inlet in a compact package. These lightweight, efficient pumps were designed specifically for truck applications including cargo cranes, hook loaders, forest cranes and concrete mixer trucks.
|Max. Displacement cu. in. / rev:||4.27 / 4.27 *|
|Outlet Pressure RPM:||4350 (300)|
|Drive Speed RPM:||1800|
|Max. Shaft Speed:||2550|
|Flow @ 1800 RPM**; Port A GPM (LPM):||32.3 (122.3)|
|Flow @ 1800 RPM**; Port B GPM (LPM):||32.3 (122.3)|
|Max. Input Power HP (KW):||150 (111.9)|
* Port A / Port B
** Port A and Port B

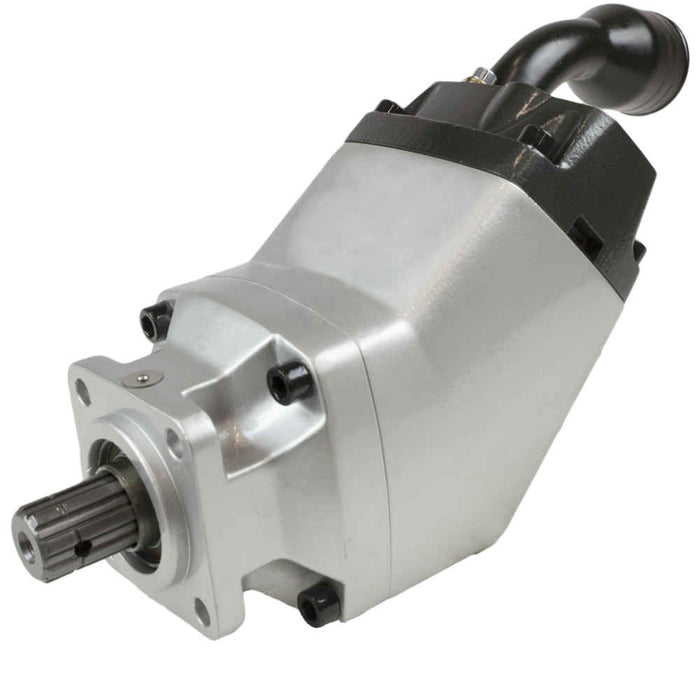

Product image is for representation only.
